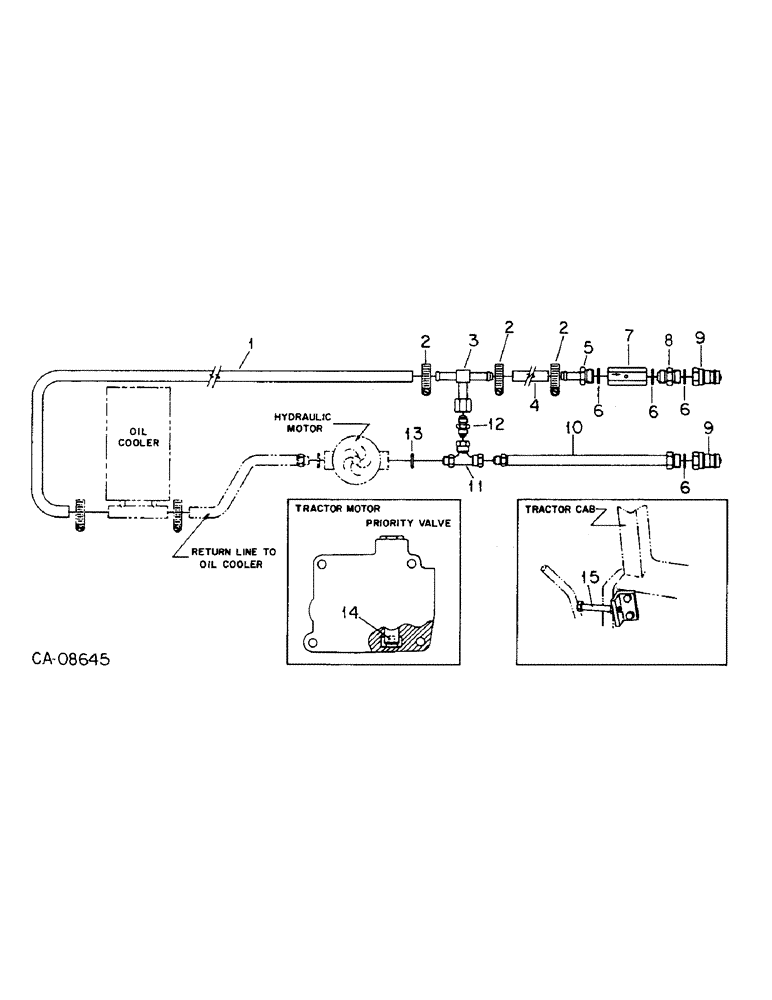

Запчасти Case IH 800 (07-42) - SEED HANDLING, DIRECT DRIVE HYDRAULIC PACKAGE, SERIAL NUMBER 14440 AND ABOVE (09) - CHASSIS/ATTACHMENTS

1

HOSE, return line from oil cooler, use 25 in. from hose, 137081C1, units A, B, C, D and S

1шт.

1

HOSE, return line from oil cooler, use 25 in. from hose, 59773C1, units H, U, V and Z

1шт.

2

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

3шт.

3

1279334C1

TEE

, Serial Range: tube-flare

1шт.

4

HOSE, return to tractor motor return valve, units A, B, C, D and S, use 197 in. from hose 137081C1

1шт.

4

HOSE, return to tractor motor return valve, units H, U, V and Z, use 95 in. from hose, 59773C1

1шт.

4

137081C1

HYDRAULIC HOSE,12.70 mm ID x 5636.00 mm, SAE 100R6

Return, Units A, B, C, D and S 12.70 mm ID x 5636.00 mm, SAE 100R6

1шт.

4

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

- Return - Units H, U, V and Z 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

5

1272331C1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 thd to 1/2 ID hose

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

7

1279338C1

VALVE

ASSY, check

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

1шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER, quick disconnect male motor supply, ISO

2шт.

10

1279337C1

HOSE

1/2 x 200 in./5080mm hyd pressure, units A, B, C, D and S

1шт.

10

1279336C1

HOSE

1/2 x 100 in./2540mm hyd pressure, units H, U, V and Z

1шт.

11

1279333C1

TEE

two female 3/4 swivel

1шт.

12

1282426C1

VALVE

coast check

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

14

1283092C1

ANGLE

handle stop support, motor valve, mounted in tractor cab

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

. 5/16 x 3/4 type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

15

1272871C1

SPACER

flow control valve, in tractor motor priority valve

1шт.
