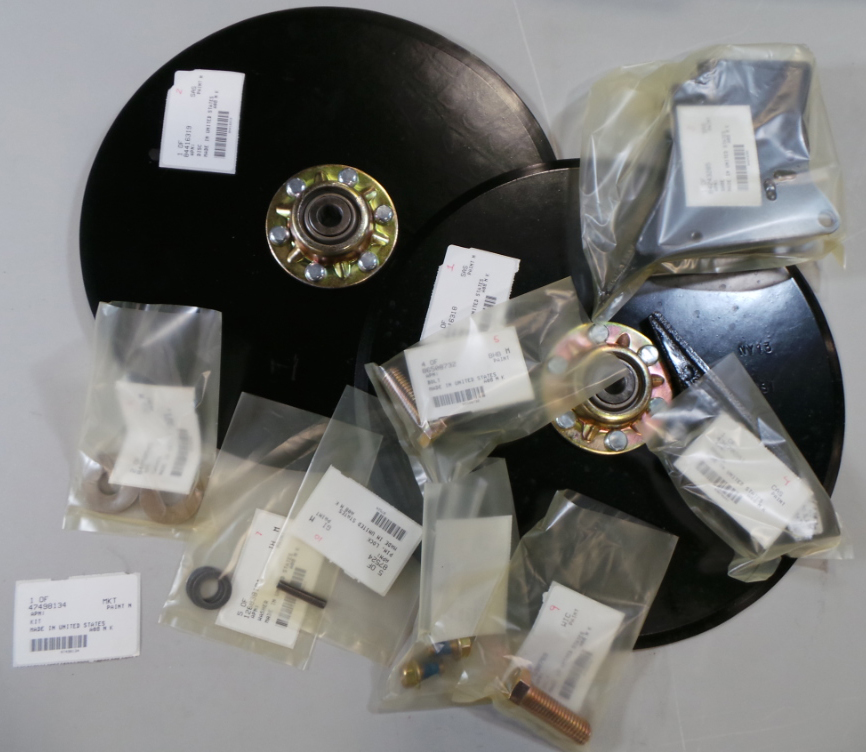

Запчасти Case IH 800 (08-25[6]) - KIT 4.5MM - HD PLANTER ROW OPENER (09) - CHASSIS/ATTACHMENTS

1

47498134

KIT

Incl 2 - 11

1шт.

2

47828498

DISK

14in Assy Leading

1шт.

3

47828499

DISK

14in Assy Trailing

1шт.

4

84243285

SHOE

Assy Seed Black

1шт.

5

436702A1

POINT

1шт.

6

86508732

BOLT,5/8"-11 x 2.391" Cl 8

1шт.

7

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

2шт.

8

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

3шт.

9

1263977C1

BOLT

2шт.

10

87698796

BOLT,Hex, 5/8-11 1.75 Full LH Thd Gr 8

LH Thread

1шт.

11

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

Applies Only To Model 800 and 900

1шт.
