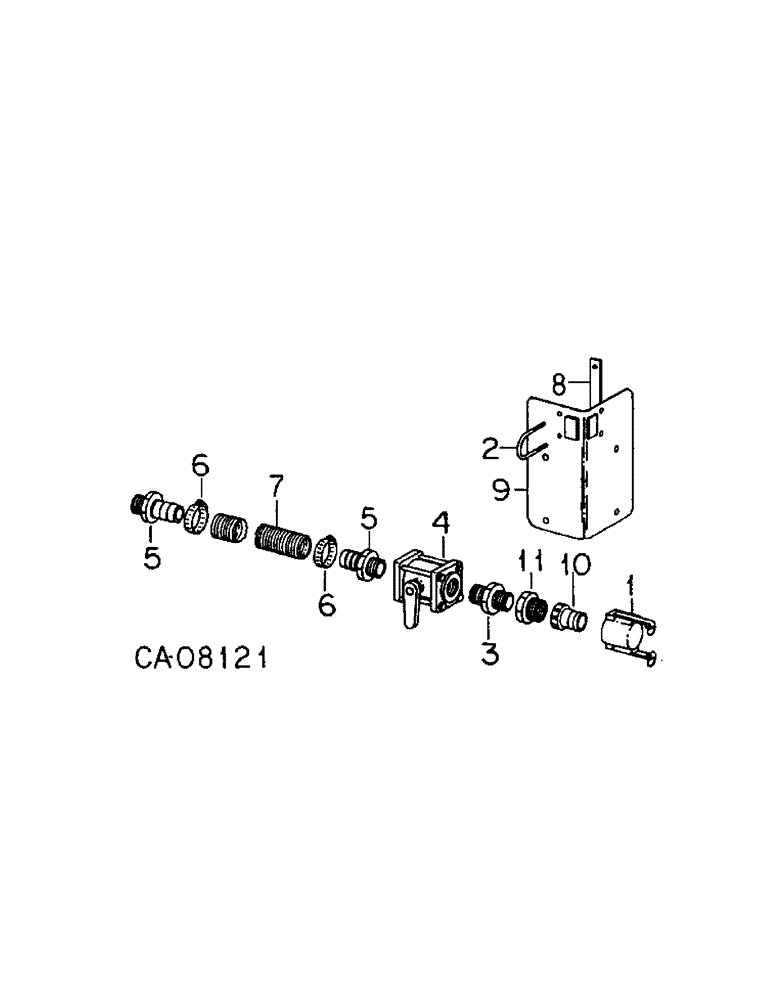

Запчасти Case IH 800 (10-23) - FERTILIZER, CENTRAL FILL ATTACHMENT, UNITS A-G, M&T FOR FILLING LIQUID TANKS FROM OPPOSITE END (09) - CHASSIS/ATTACHMENTS

1

1264066C1

CAP

dust 1-1/2

1шт.

2

1264087C1

U-BOLT

UR .313 2.188W 3.13D

1шт.

120376

NUT,5/16"-18, G5

2шт.

3

1264070C1

FITTING

NIPPLE, 1-1/4 x 1-1/4

1шт.

4

1264073C1

VALVE, CHECK

VALVE ASSY

1шт.

Ref #4 - Replaced by 1954828C1 Valve Assy and 1337550C1 Brkt

1шт.

5

1264072C1

FITTING

1-1/4 x 1-1/2

2шт.

6

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, no. 24 type F hose

2шт.

7

HOSE, liquid fertilizer fill, furnish 3 feet from coil marked 1264065C1

1шт.

8

1261430C1

BAR

PLATE, backup

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

1261429C1

BRACKET

mounting

1шт.

10

1264069C1

FITTING

ADAPTER, 1-1/2 x 1-1/2

1шт.

11

1264071C1

FITTING

REDUCER, 1-1/2 x 1-1/4

1шт.
