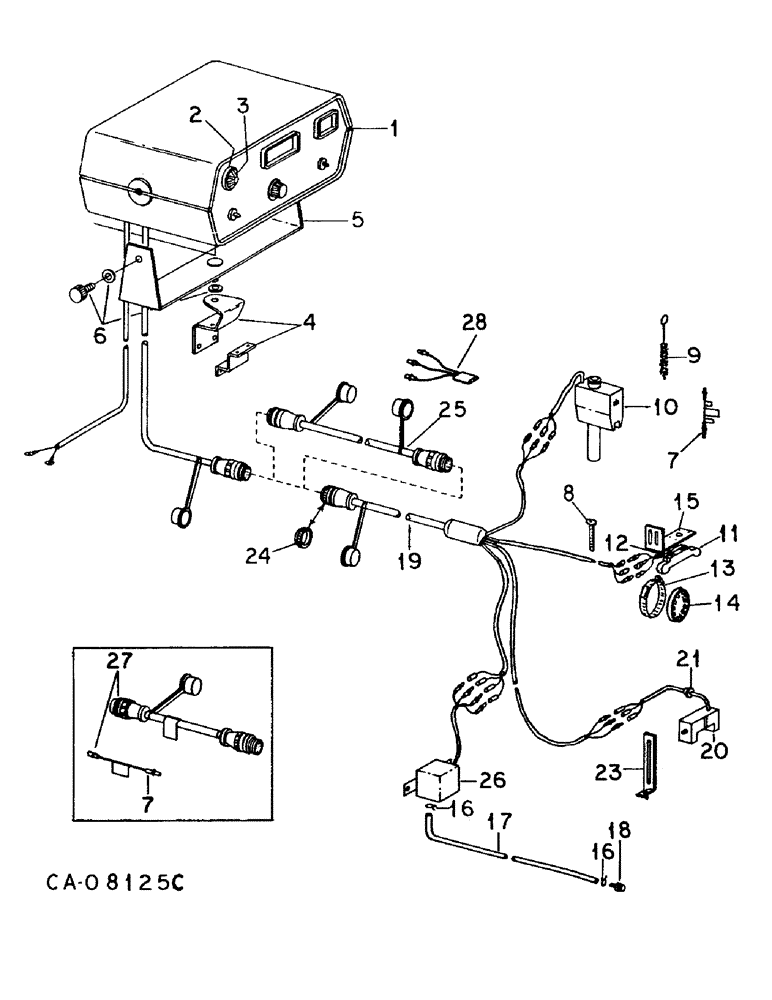

Запчасти Case IH 800 (12-10) - MONITORS, DIGITAL CYCLOMITOR III MONITOR, UNITS A THRU E, H, J, R, S, U AND V, S.N 16800 AND BELOW (04) - ELECTRICAL SYSTEMS

1

1261412C91

ATTACHMENT

CONSOLE, renewed, units A to D, H, S, U and V

1шт.

1

1261413C91

ATTACHMENT

CONSOLE, renewed, units E, J, R

1шт.

106652

FUSE,3 Amp, Type 3AG

3AG 3 amperes

1шт.

2

128816C1

BUZZER

ALARM

1шт.

58554C1

BULB,C2F, #1892, 14V

LAMP, type C-2F trade #1892

1шт.

3

178876C1

SUPPRESSOR

DAMPER, alarm

1шт.

4

1261522C91

BRACKET, SUPPORTING

BRACKETS, cab mounting, consists of two unlike brackets

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

1261523C91

BRACKET

console

1шт.

6

1261524C91

REPAIR KIT

KNOBS W/WASHER, consists of two knobs and three washers

1шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

58557C1

ELECTRICAL WIRE

WIRE, short

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP, 7 inch tie

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, 14 inch tie, replaces 58556C1

1шт.

9

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

10

59363C1

SENSOR

ASSY, seed, one per row, order seed sensor, 245599C1 and adapter harness, 245746C1

1шт.

11

1261526C1

SWITCH

ASSY, drum, order drum switch, 245602C1 and adapter harness, 245750C1

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

4шт.

12

1261538C1

BUSHING

drum switch

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

1шт.

13

178800C1

CLAMP

ASSY

1шт.

14

1261527C1

MAGNET

EXPANDER, magnet

1шт.

15

1261528C1

BRACKET

switch mounting

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

16

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, no. 4 type E spring wire hose

2шт.

17

1261529C1

HOSE

pressure, clear

1шт.

18

1261530C1

ADAPTER

ADPATER W/NUT, hose

1шт.

21872R1

WASHER

.406 x .625 x .054

1шт.

19

1261532C91

HARNESS

wiring, unit A

1шт.

19

1261533C91

HARNESS

wiring, units B, S and U

1шт.

19

1261534C91

HARNESS

wiring, units C, D, H and V

1шт.

19

1261535C91

HARNESS

wiring, units E and J

1шт.

19

1277515C91

HARNESS

wiring, unit R, built 1982

1шт.

19

1277849C91

HARNESS

wiring, unit R, built 1983 and since

1шт.

20

140449C91

RELAY

SENSOR ASSY, hopper, order hopper sensor, 245608C1 and adapter harness, 245749C1

1шт.

21

137437C1

GROMMET

1шт.

22

(Not used this application)

1шт.

23

113432C1

BRACKET

hopper sensor

1шт.

120387

WASHER,3/8" x 3/4" x .060"

.375 x .750 x .054

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5, 2 for units E, J and R

1шт.

134238R1

WASHER

.344 x 1.000 x .054, 4 for units E, J and R

1шт.

120376

NUT,5/16"-18, G5

2 for units E, J and R 5/16"-18, G5

1шт.

24

149459C91

SEAL PACKAGE

COUPLING, breakaway ring, consists of ten coupling rings

1шт.

25

133896C93

HARNESS

CABLE, extension, 15 ft, for use when planter is mounted behind other implements

1шт.

26

133897C1

SWITCH

SENSOR, air pressure, order sensor control assy, 245605C91 and adapter harness, 245747C1

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

27

1277508C91

ADAPTER

ASSY, harness, unit R

1шт.

28

245746C1

HARNESS

seed sensor adapter, for use with new sensor on old monitor harness

1шт.

28

245751C1

CABLE

HARNESS, seed sensor adapter, for use with old sensor on new monitor harness

1шт.

28

245747C1

HARNESS

air pressure sensor adapter, for use with new sensor on old monitor harness

1шт.

28

245752C1

ADAPTER

HARNESS, air pressure sensor adapter, for use with old sensor on new monitor harness

1шт.

28

245749C1

HARNESS

hopper level sensor adapter, for use with new sensor on old monitor harness

1шт.

28

245754C1

ADAPTER

HARNESS, hopper level sensor adapter, for use with old sensor on new monitor harness

1шт.

28

245750C1

HARNESS

drum reverse sensor adapter, for use with new sensor on old monitor harness

1шт.

28

245755C1

ADAPTER

HARNESS, drum reverse sensor adapter, for use with old sensor on new monitor harness

1шт.
