(13-11) - EARLY RISER PLATE PLANTER UNIT, CHAIN GUARD ATTACHMENT, QUANTITIES ARE SHOWN PER ROW

Запчасти Case IH 800 (13-11) - EARLY RISER PLATE PLANTER UNIT, CHAIN GUARD ATTACHMENT, QUANTITIES ARE SHOWN PER ROW (09) - CHASSIS/ATTACHMENTS

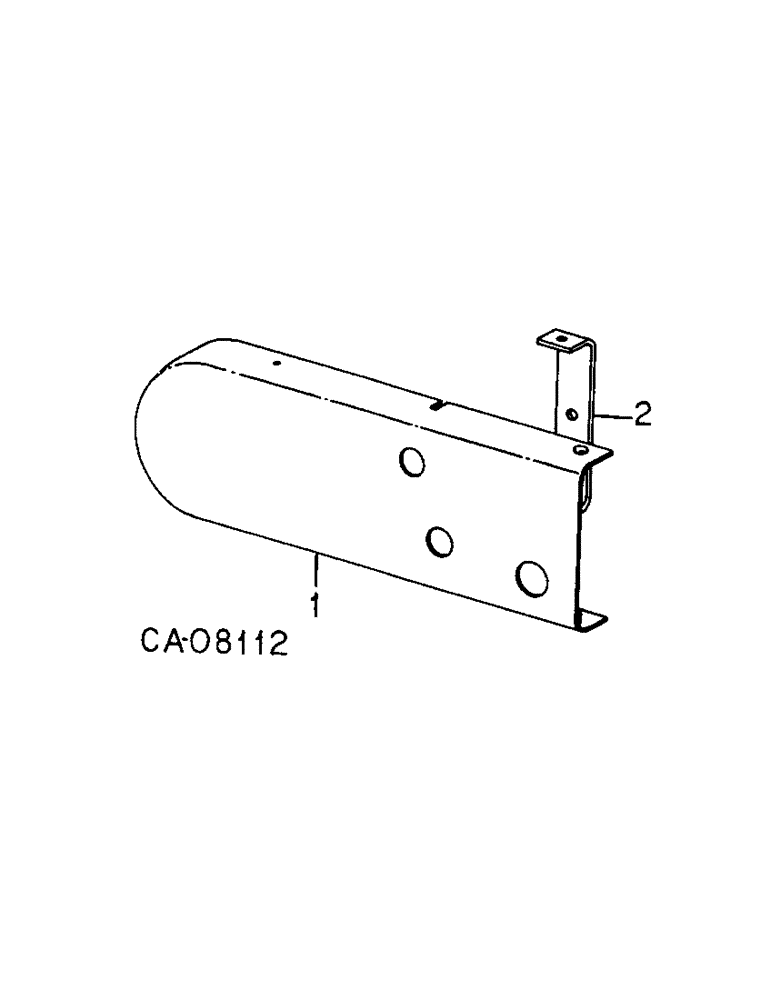

Схема запчастей Case IH 800 - (13-11) - EARLY RISER PLATE PLANTER UNIT, CHAIN GUARD ATTACHMENT, QUANTITIES ARE SHOWN PER ROW (09) - CHASSIS/ATTACHMENTS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1261596C1

COVER

ASSY, chain guard

1шт.

2

1254340C1

CHANNEL

cover mtg bar

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

62372C1

THUMB SCREW

1/4-20 wing

2шт.
