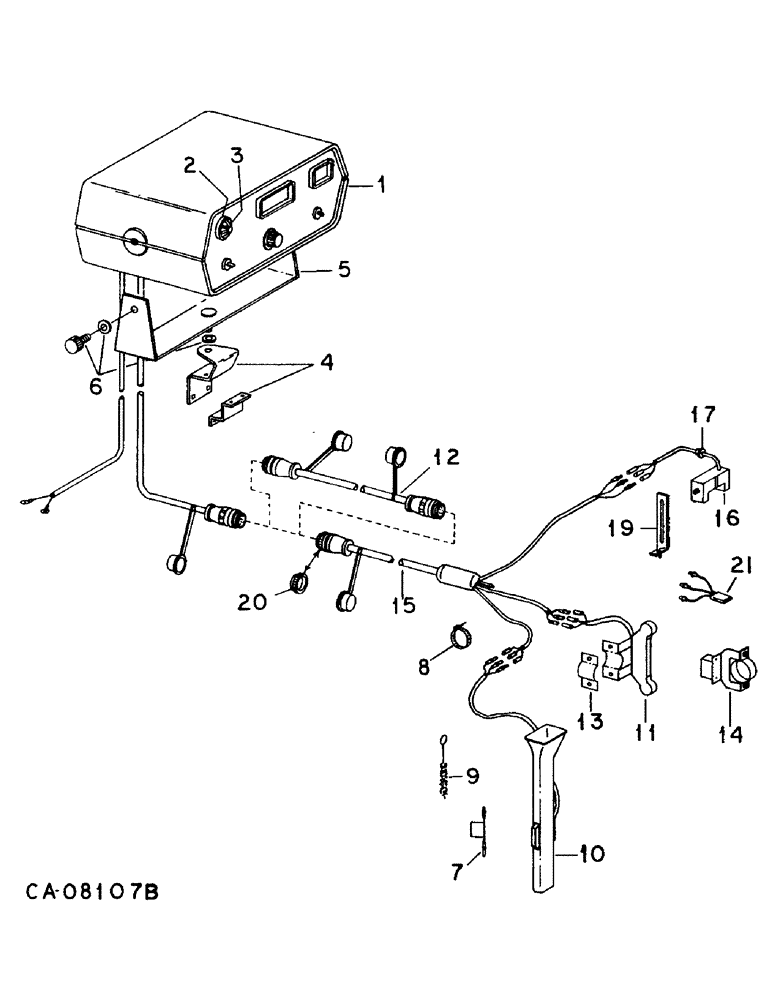

Запчасти Case IH 800 (12-14) - MONITORS, SEED COUNT III MONITORS, UNITS F, G, K THRU Q AND T WITH SERIAL NUMBER 4200 AND BELOW (04) - ELECTRICAL SYSTEMS

1

1261415C91

REMAN-ELECT MONITOR

CONSOLE, renewed, units F, G and K thru P

1шт.

1

1277511C91

REMAN-ELECT MONITOR

CONSOLE, renewed, units Q and T

1шт.

106652

FUSE,3 Amp, Type 3AG

3AG 3 amperes

2шт.

2

128816C1

BUZZER

ALARM

1шт.

58554C1

BULB,C2F, #1892, 14V

LAMP, type C-2F trade #1892

1шт.

3

178876C1

SUPPRESSOR

DAMPER, alarm

1шт.

4

1261522C91

BRACKET, SUPPORTING

BRACKETS, cab mounting, consists of two unlike brackets

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

1261523C91

BRACKET

console

1шт.

6

1261524C91

REPAIR KIT

KNOBS W/WASHERS, consists of two knobs and three washers

1шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

58557C1

ELECTRICAL WIRE

WIRE, shorting

2шт.

8

58555C1

FASTENER

TIE, 7 inch

1шт.

8

306132C1

CABLE TIE,14.5" L

TIE, 14 inch, replaces 58556C1

1шт.

9

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

10

TUBE W/SENSOR, seed, refer to planter unit, plate in group 07

1шт.

11

1264116C1

SWITCH

ASSY, plate, order switch assy, 245401C1 and adapter harness, 245750C1

1шт.

12

133896C93

HARNESS

CABLE, extension, 15 ft, for use when planter is mounted behind other implements

1шт.

13

1264117C1

BUSHING

plate switch

1шт.

14

1264118C1

MAGNET

ASSY

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

15

1261532C91

HARNESS

wiring, unit F

1шт.

15

1261533C91

HARNESS

wiring, units G and K

1шт.

15

1261534C91

HARNESS

wiring, units L thru P

1шт.

15

1261535C91

HARNESS

wiring, units Q and T

1шт.

16

140449C91

RELAY

SENSOR ASSY, hopper, order hopper sensor, 245608C1 and adapter harness, 245749C1

1шт.

17

137437C1

GROMMET

1шт.

18

(Not used this application)

1шт.

19

113432C1

BRACKET

hopper sensor

1шт.

120387

WASHER,3/8" x 3/4" x .060"

.375 x .750 x .054

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

20

149459C91

SEAL PACKAGE

COUPLING, breakaway ring, consists of ten coupling rings

1шт.

21

245746C1

HARNESS

seed sensor adapter, for use with new sensor on old monitor harness

1шт.

21

245751C1

CABLE

HARNESS, seed sensor adapter, for use with old sensor on new monitor harness

1шт.

21

245749C1

HARNESS

hopper level sensor adapter, for use with new sensor on old monitor harness

1шт.

21

245754C1

ADAPTER

HARNESS, hopper level sensor adapter, for use with old sensor on new monitor harness

1шт.

21

245750C1

HARNESS

drum reverse sensor adapter, for use with new sensor on old monitor harness

1шт.

21

245755C1

ADAPTER

HARNESS, drum reverse sensor adapter, for use with old sensor on new monitor harness

1шт.
