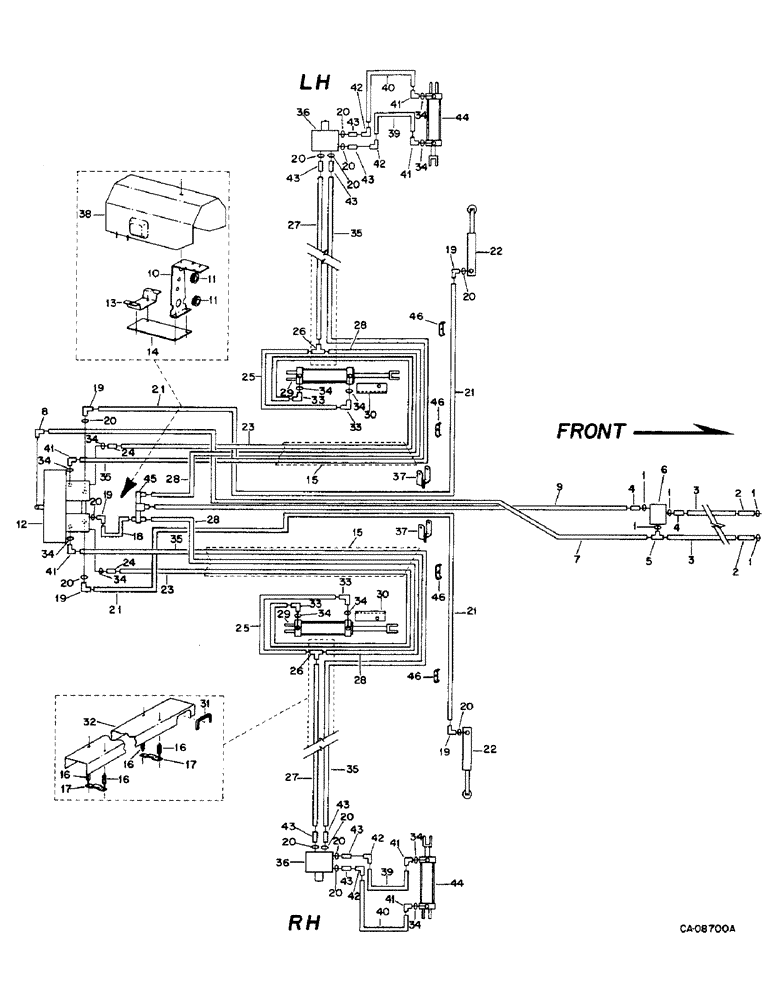

Запчасти Case IH 800 (05-08) - WHEELS, HYDRAULIC CYLINDERS, HOSES, VALVE, CONNECTION FOR IN&OUTBOARD WHEELS&HORIZ. FOLD UNITS W X&Y (06) - POWER TRAIN

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

5шт.

2

1282422C91

FILTER

ASSY, bi-directional flow, only serviceable items are

2шт.

1282434C1

KIT

filter element, spring and gasket

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

3

1277599C2

HOSE

1/2 x 74.80 in. hydraulic, tractor/check valve

2шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

2шт.

5

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

6

1272359C91

VALVE

ASSY, pilot operated check, for components see list of parts under details of pilot operated check valve

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

7

1254532C2

HOSE

1/2 x 124 in. hydraulic, check valve/flow divider

1шт.

8

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

5/8 C-Z hyd fld 90D swivel

1шт.

9

1254531C2

HYDRAULIC HOSE

HOSE, 1/2 x 109.25 in. hydraulic, junction block/check valve

1шт.

10

1268267C1

SUPPORT

BRACKET ASSY, junction block support

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex head

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

11

100247C1

GROMMET

bracket

2шт.

12

VALVE ASSY, level lift, for components see list of parts under details of level lift valve

1шт.

13

1254455C1

BRACKET

flow divider

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex head

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

14

1279383C1

SUPPORT

test fixture, bar

1шт.

15

1277567C1

PIPE

COVER, hose, flexibel vinyl tube, 3 in. ID x 15 feet

1шт.

16

1277576C1

BOLT,1/2" - 13 x 98mm

cover

8шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

6шт.

137156

WING NUT,1/2"-13

NUT, 1/2 wing

8шт.

17

1277580C1

BAR

clamp

4шт.

18

1254450C1

TUBE

ASSY, pilot

1шт.

19

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

5шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

13шт.

21

1254530C2

HYDRAULIC HOSE

HOSE, 1/4 x 130 in. hydraulic, flow divider/latch cylinder

2шт.

22

1282429C92

CYLINDER

ASSY, 1 x 4 in. single acting hydraulic ram, latch, IH, only serviceable items are

2шт.

1282430C2

ROD

hydraulic cylinder piston

1шт.

1282437C1

SEAL KIT

KIT, hydraulic seal service, or

1шт.

22

1285724C2

CYLINDER

ASSY, 1 x 4 in. single acting hydraulic ram, latch, Bruning

2шт.

23

1254529C2

HOSE

3/8 x 133.86 in. hydraulic, flow divider/lift cylinder, piston

2шт.

24

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

2шт.

25

1268251C1

HOSE

3/8 x 49.21 in. hydraulic return, tee/lift cylinder, rod

2шт.

26

1268288C1

TEE

1/2 - 3/8 reducing

2шт.

27

1254526C2

HOSE ASSY.

HOSE, 1/4 x 135 in. hydraulic return, tee/marker-wheel valve

2шт.

28

1254525C2

HOSE

3/8 x 89.57 in. hydraulic return, tee/junction block

2шт.

29

142547C93

CYLINDER ASSY.

CYLINDER ASSY, 5 x 12 in. double acting hydraulic, lift, Prince, optional with 92790C91, for components see list of parts under details of hyd cylinder

2шт.

29

92790C91

CYLINDER ASSY.

CYLINDER ASSY, 5 x 12 in. double acting hydraulic, lift, Iowa industrial, optional with 142547C93, for components see list of parts under details of hyd cylinder

2шт.

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN, 1-1/4 x 3-3/4 znp clevis

4шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

4шт.

30

1277797C2

BRACKET

cylinder stop

2шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

2шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

2шт.

31

1279202C1

MOLDING

monitor cover, trim

4шт.

32

1277577C1

COVER

monitor wire, 2 for units W and X

1шт.

32

1279469C1

COVER

monitor wire, 2 for unit Y

1шт.

33

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

4шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

12шт.

35

1254528C2

HYDRAULIC HOSE

HOSE, 1/4 x 225 in. hdyraulic, flow divider/marker-wheel valve

2шт.

36

1272466C91

VALVE

ASSY, marker-wheel, for components see list of parts under details of marker-wheel valve in group 09

2шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4 x 2-1/4 type 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

37

1268273C1

BRACKET

ASSY, hose

2шт.

23172R1

PIN

1/2 x 3.750 hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

38

1268295C1

COVER

ASSY, hydraulic

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

6шт.

7500032

BUSHING

NUT, 5/16 wing

5шт.

39

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

- Marker-wheel valve/wheel cylinder rod end, Units W and X 6.35 mm ID x 1195.00 mm

2шт.

39

129908C1

HYDRAULIC HOSE

HOSE, 1/4 x 55 in. hydraulic, replaces 1279522C1, marker-wheel valve/wheel cylinder rod end, unit Y

2шт.

40

1254527C2

HYDRAULIC HOSE

HOSE, 1/4 x 37 in. hyraulic, marker-wheel valve/wheel cylinder piston end, units W and X

2шт.

40

1254576C2

HOSE ASSY.

HOSE, 1/4 x 43 in. hyraulic, replaces 1279524C1, marker-wheel valve/wheel cylinder piston end, unit Y

2шт.

41

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

4шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-z hyd fld 90D swivel

4шт.

43

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

8шт.

44

1272145C91

CYLINDER ASSY.

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic, wheel, for components see list of parts under details of hyd cylinder

2шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis, replaces 61571C1

2шт.

64560C1

HEADED PIN

PIN, headed

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

45

1255331C1

BLOCK

ASSY, junction

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

46

129886C2

CLAMP

hose, 4 for unit W, 6 for units X & Y

1шт.

180166

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

1/2 x 1/2 type 5

4шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4 type 5, 2 for units X and Y

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, 7 in. tie

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

1шт.
