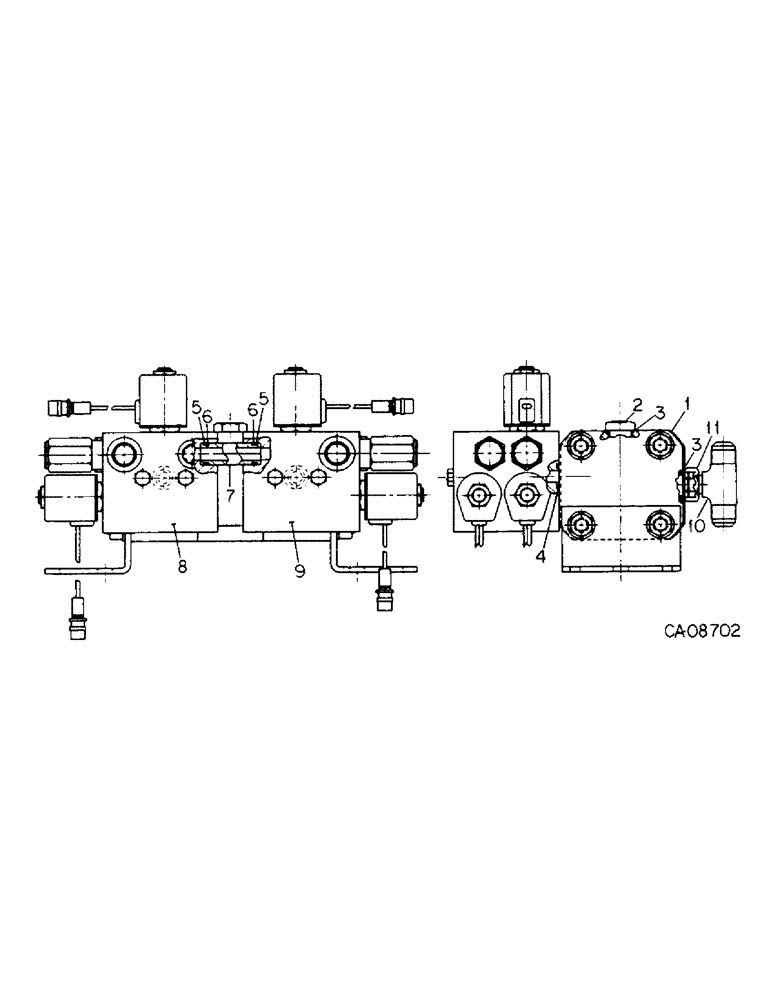

Запчасти Case IH 800 (05-13) - WHEELS, LEVEL LIFT VALVE, UNITS W, X AND Y (06) - POWER TRAIN

VALVE ASSY, level lift service parts are

1шт.

1

142843C93

VALVE

ASSY, flow divider, consists of

1шт.

24496R1

O-RING,-041, 70 Duro, 2.989" ID x .070" Thk

3 x 3-1/8 class 5

2шт.

149942C1

SEAL KIT

KIT, relief valve seal

2шт.

149932C1

VALVE

relief

2шт.

2

9410360

PLUG

5/8 C-Z str thd O-ring boss

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

4

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 class 6

2шт.

5

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

2шт.

6

544795R1

WASHER

RING, back-up

2шт.

7

1255318C2

TUBE,19.05 mm OD, 53.5" Length

junction

1шт.

8

1255326C91

BLOCK

VALVE ASSY, right wing holding, for components see list of parts under details of right wing holding valve

1шт.

413-566

BOLT,Hex, 5/16" - 18 x 4-1/8", Gr 5

5/16-18 x 4-1/8 h/hd

2шт.

9

1255327C91

BLOCK

VALVE ASSY, left wing holding, for components see list of parts under details of left wing holding valve

1шт.

413-566

BOLT,Hex, 5/16" - 18 x 4-1/8", Gr 5

5/16-18 x 4-1/8 h/hd

2шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

11

149932C1

VALVE

relief

2шт.

24496R1

O-RING,-041, 70 Duro, 2.989" ID x .070" Thk

3 x 3-1/8 class 5

2шт.

149942C1

SEAL KIT

KIT, relief valve seal, consists of O-ring (NSS), O-ring (NSS), washer, back-up (NSS)

2шт.
