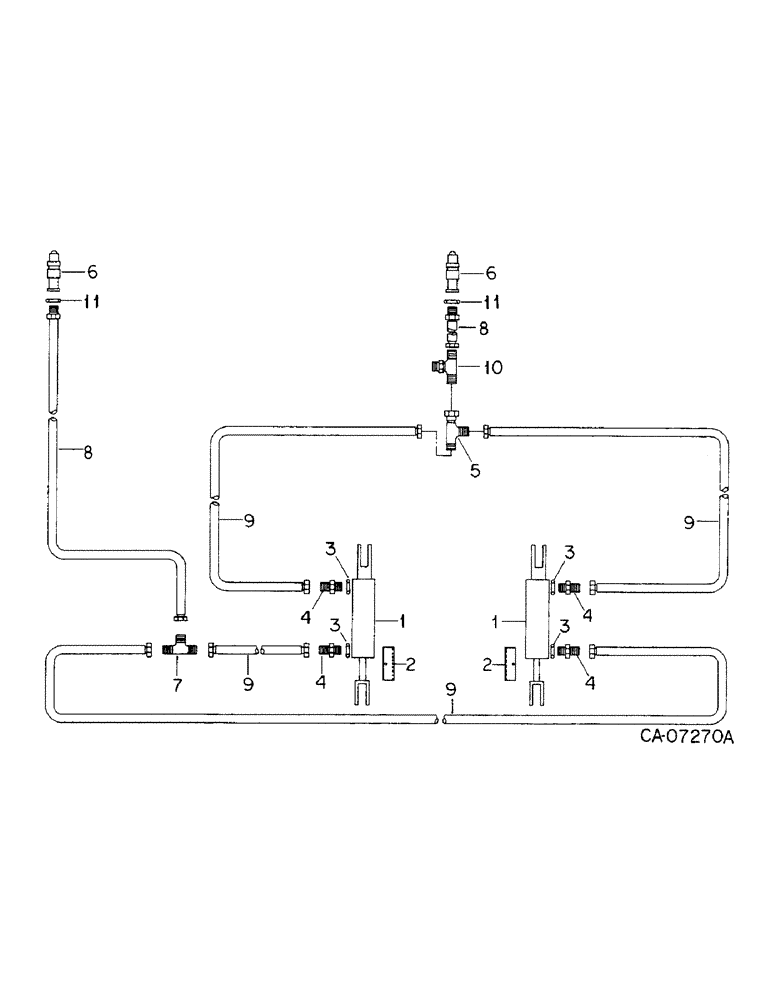

Запчасти Case IH 800 (05-27) - WHEELS HYDRAULIC CYLINDER&CONNECTIONS FOR ASSIST WHEELS UNITS H, J, K, L, N, O, P, Q, R, U, V, AA&AB (06) - POWER TRAIN

1

371291R97

CYLINDER

ASSY, 2-1/2 x 8 in. double acting hydraulic, 2 for units H, J, K, L, N, P, Q and R, built 1981 and 1982, for service replacement, order

1шт.

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, 7/8-14 female x 3/4-16 male O-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, for components see list of parts under details of hyd cylinder

2шт.

1

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic, 2 for units H, J, K, L, N, P, Q, U and V, built 1983 and since, for components see list of parts under details of hyd cylinder

1шт.

1

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic, 2 for units R, AA and AB, for service replacement, order cylinder assy, 1263474C91, built 1983 and since, for components see list of parts under details of hyd cylinder

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis

4шт.

520175R1

CLIP

PIN, quick attachable cot.

4шт.

2

1268367C2

STOP

cylinder, used only w/transport attachment

2шт.

479749R1

HEADED PIN,1/4" x 3 3/8"

PIN, 1/4 x 3.375 hd type 5

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, .094 x 2.402 hd cad q.a.

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, used w/connector, 9410204

4шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used w/connector, 384539R1

4шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, used w/cylinder, 371291R97

4шт.

4

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht, used w/cylinders, 145352C91 and 145353C91

4шт.

5

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel, units H, J, K, L, N, P, Q, R, AA and AB

1шт.

5

9402983

TEE,7/8"-14, 37 Degree

5/8 C-Z hyd flared three way, units U and V

1шт.

5

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd flared tube, machines without markers

1шт.

6

544787R91

COUPLING, BREAK AWAY

COUPLER, quick attachable male, IH

2шт.

6

1272399C2

QUICK MALE COUPLING

COUPLER, quick attachable male, ISO

2шт.

7

9402983

TEE,7/8"-14, 37 Degree

5/8 C-Z hyd flared three way

1шт.

8

116098C91

HOSE

1/2 x 60 in. hydraulic, 2 for units H, J, K, L, N, P, Q, R, U and V, 1 for units AA and AB

1шт.

8

541629R1

HOSE

1/2 x 46 in. hydraulic, units AA and AB

1шт.

9

196814C1

HOSE

1/2 x 80 in. hydraulic, 1 for unit R, 4 for units H, K, L, P, Q, U, AA and AB

1шт.

9

1254120C1

HOSE

1/2 x 50 in. hydraulic, 3 for unit R

1шт.

9

1250694C1

HYDRAULIC HOSE

HOSE, 1/2 x 100 in. hydraulic, 4 for units J, N and V

1шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj, units K, L and R

1шт.

10

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

5/8 C-Z hyd fld tube swivel, units H, J, P, Q, AA and AB

1шт.

10

9402983

TEE,7/8"-14, 37 Degree

5/8 C-Z hyd flared three way, units N, U and V

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

306132C1

CABLE TIE,14.5" L

STRAP, tie

2шт.
