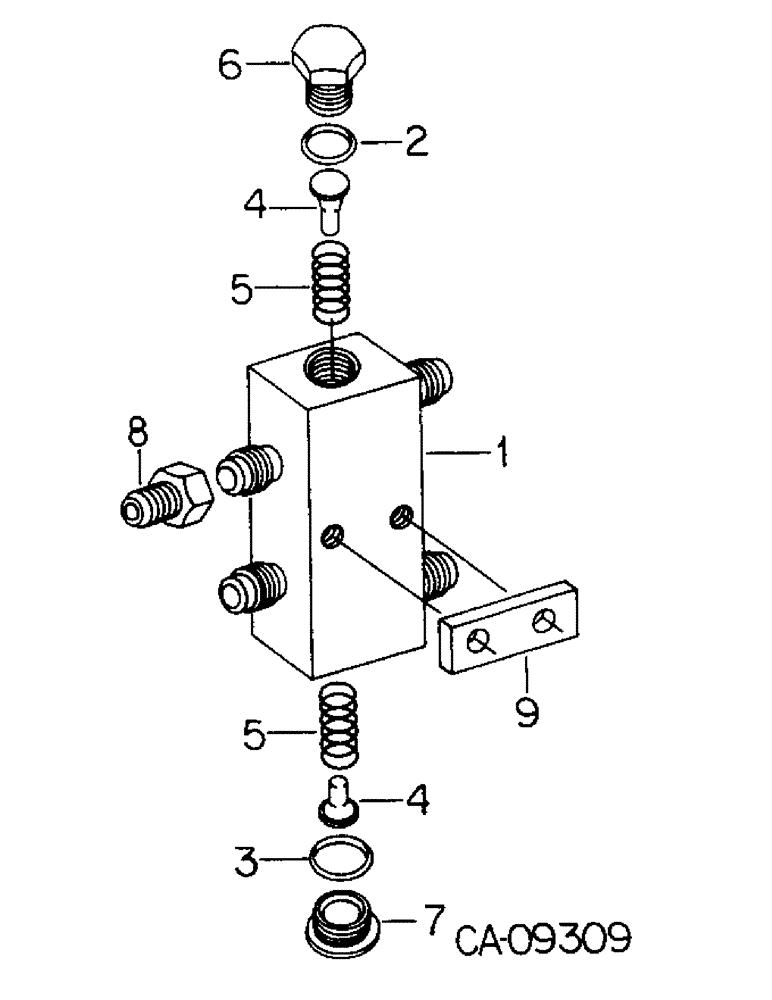

Запчасти Case IH 800 (05-37) - WHEELS, ALTERNATING CHECK VALVE, FOR UNITS A, B, F, G, H, J, K, L, N, P, Q, R, U, V, Z, AA AND AB (06) - POWER TRAIN

1

142864C95

VALVE

ASSY, alternating check, includes ref nos 1 through 7

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, upper plug

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6, lower plug

1шт.

4

85145C1

PIN

ball retainer

2шт.

5

372649R1

SPRING

check valve

2шт.

6

PLUG (NSS), upper

1шт.

7

PLUG (NSS), lower

1шт.

8

Not used this application

1шт.

9

Not used this application

1шт.
