(9-026) - HITCH SPREADER BARS, CYCLO AIR AND PLATE PLANTERS

Запчасти Case IH 900 (9-026) - HITCH SPREADER BARS, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

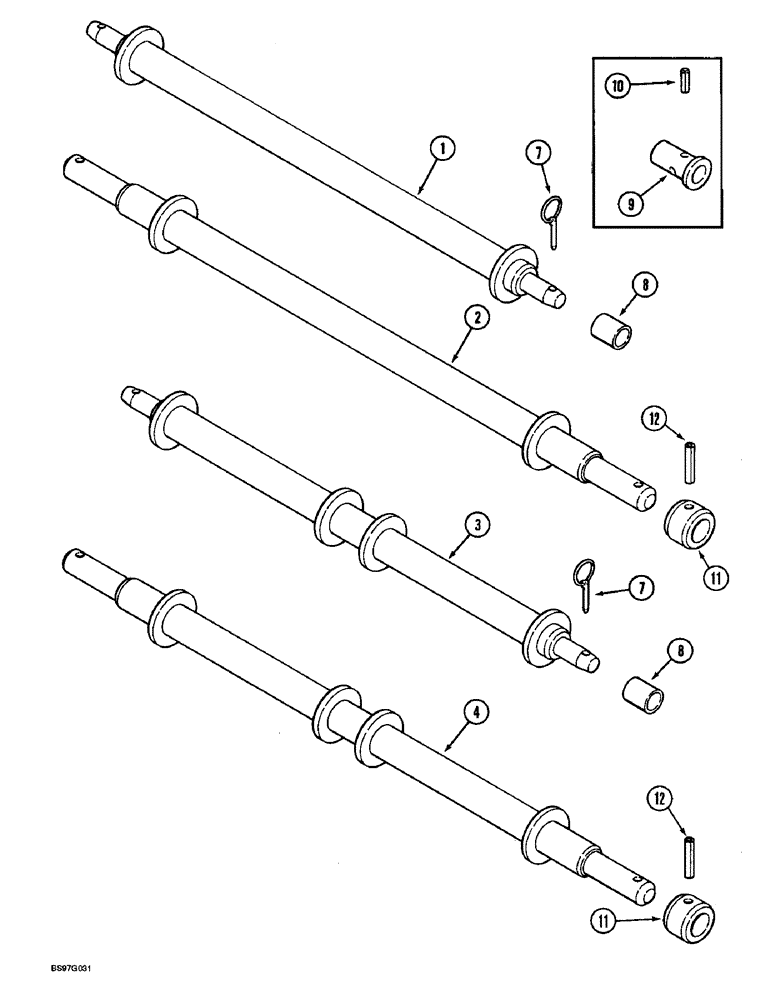

Схема запчастей Case IH 900 - (9-026) - HITCH SPREADER BARS, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
3
12
8
9
7
7
11
12
4
1
10
11
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

137084C1

SPINDLE

- hitch, Category II

1шт.

2

137083C1

SPINDLE

- hitch, Category III

1шт.

3

483572R92

SPINDLE

- spreader, Category II

1шт.

4

57233C1

SPINDLE

- spreader, Category III, endwise transport

1шт.

7

A33509

PIN,11.18mm OD

- lock, 7/16 inch diameter

2шт.

8

L10463

BUSHING

ADAPTER - lower hitch pin (Category II spreader bar to Category III hitch)

2шт.

9

T32995

ADAPTER

- hitch coupler (Category II spreader bar to hitch coupler)

2шт.

10

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

11

401233R1

COLLAR

- thrust

2шт.

12

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.
