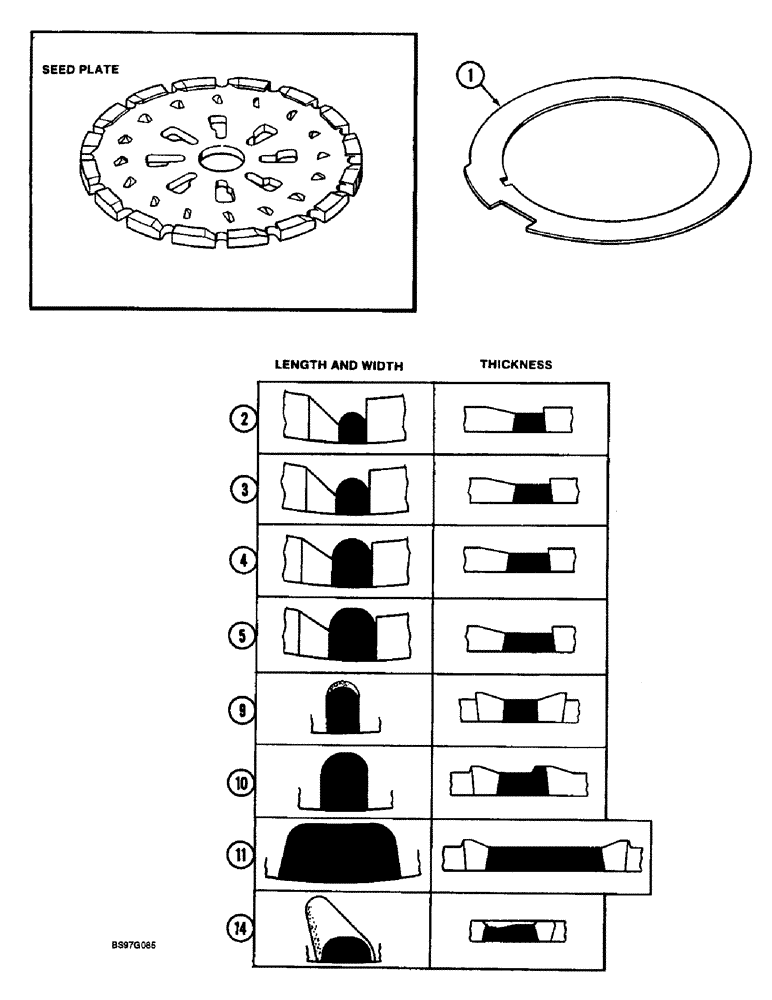

Запчасти Case IH 900 (9-148) - SEED PLATES, COTTON PLATES FOR COTTON PLANTING HOPPER BOTTOM, MACHINE DELINTED SEED (09) - CHASSIS/ATTACHMENTS

1

622481R1

RING

- filler

1шт.

2

477025R1

PLATE

- seed, 16 cell, 20/64 x 22/64 x 18/64 inch

1шт.

3

477026R1

PLATE

- seed, 16 cell, 24/64 x 26/64 x 18/64 inch

1шт.

4

477027R1

PLATE

- seed, 16 cell, 28/64 x 34/64 x 18/64 inch

1шт.

4

100137C1

PLATE

- seed, 24 cell, 28/64 x 34/64 x 18/64 inch, l

1шт.

5

477028R1

PLATE

- seed, 16 cell, 32/64 x 38/64 x 18/64 inch

1шт.

5

100138C1

PLATE

- seed, 24 cell, 32/64 x 38/64 x 18/64 inch

1шт.

9

621719R3

PLATE

- seed, 42 cell, 20/64 x 26/64 x 18/64 inch, reginned or gen run

1шт.

10

621717R3

PLATE

- seed, 38 cell, 29/64 x 34/64 x 18/64 inch, reginned or gen run

1шт.

11

622424R1

PLATE

- seed, 19 cell, 60/64 x 34/64 x 18/64 inch, reginned or gen run

1шт.

14

622480R1

PLATE

- seed, 40 cell, 30/64 x 13.5/64 x 12/64 inch, requires 633481R1 filler ring, acid delinted

1шт.

Ref #14 correction: filler ring for this is 622481r1 (not 633481r1).

1шт.
