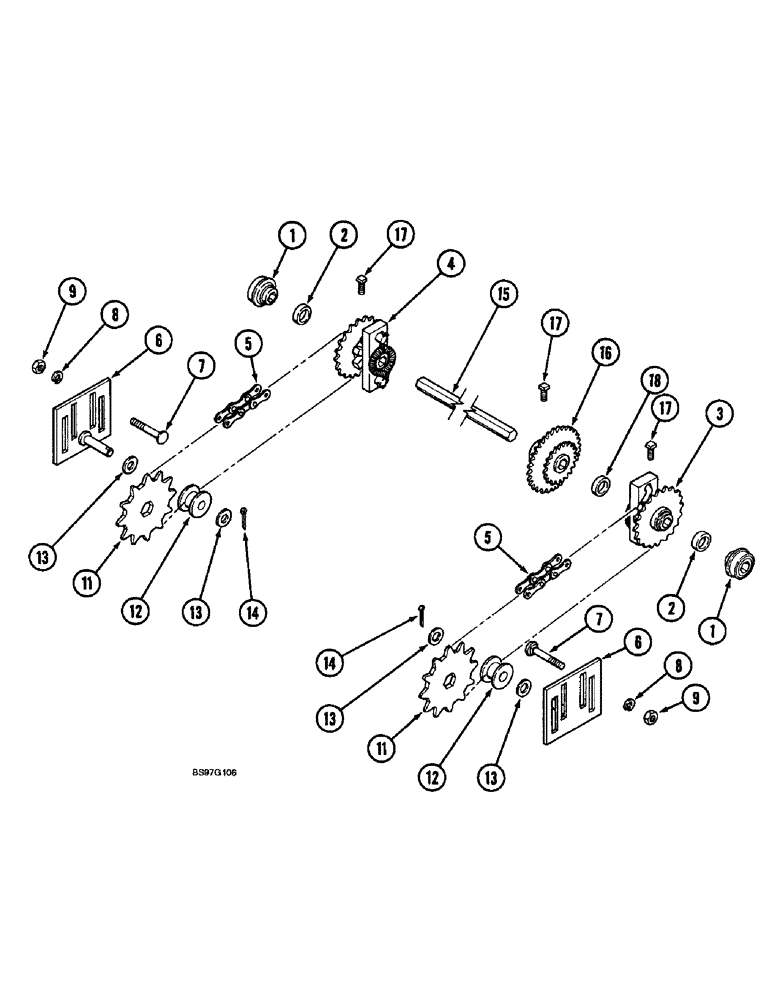

Запчасти Case IH 900 (9-196) - PRIMARY SEED DRIVE, PLATE MOUNTED, 4 ROW ADJUSTABLE (09) - CHASSIS/ATTACHMENTS

1

134181C92

BALL BEARING,2.125" OD x 0.046"

- ball, primary drive

2шт.

2

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm

2шт.

3

REF

INSTRUCTION

SPROCKET ASSEMBLY - left-hand drive ratchet (See Page 9-205)

1шт.

4

REF

INSTRUCTION

SPROCKET ASSEMBLY - right-hand drive ratchet (See Page 9-205)

1шт.

5

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - primary wheel drive (Use 55 links from bulk chain 569089R91, and 1 connecting link 1277928C91)

2шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.

1277928C91

LINK

- chain connecting

1шт.

6

193948A1

IDLER

PLATE - wheel drive idler

2шт.

7

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1277736C1

SPROCKET

- drive wheel, 12 teeth

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

- idler, drive chain

2шт.

13

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

1254282C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3000 mm (118-1/8 inch) long

1шт.

16

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth, speed change

1шт.

17

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

6шт.

18

144812C2

SPACER

- 27 x 33 x 17 mm

1шт.
