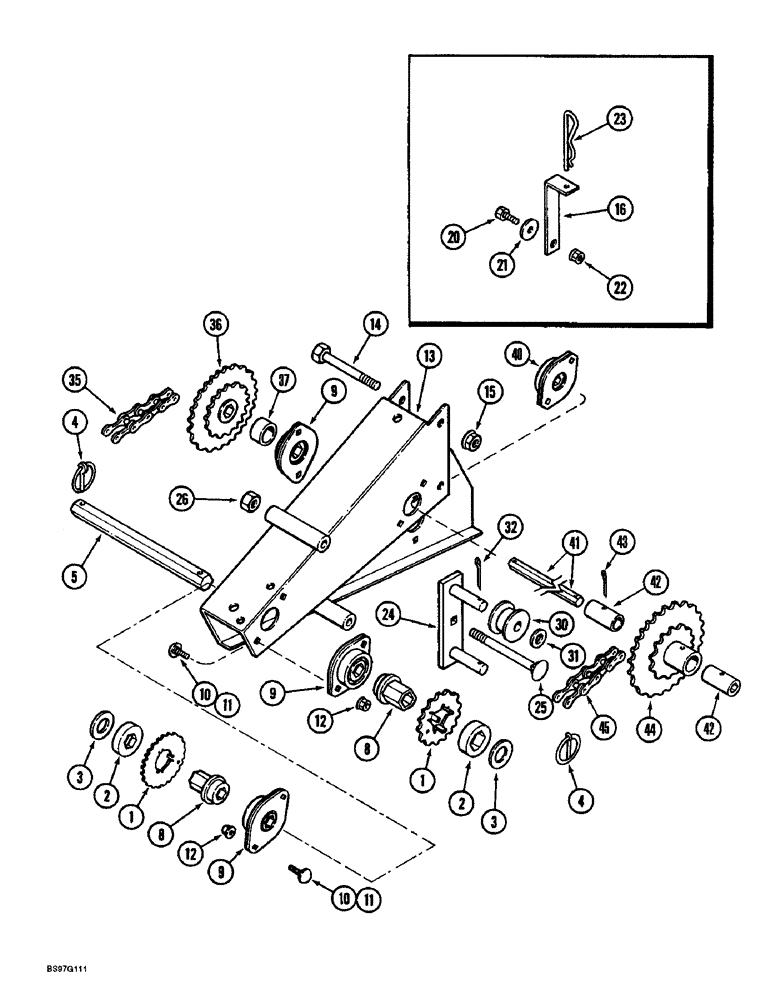

Запчасти Case IH 900 (9-206) - SEED DRIVE SPEED CHANGE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

90897C1

DRIVE SPROCKET

SPROCKET - drive, 20 teeth

1шт.

1

90898C1

DRIVE SPROCKET

SPROCKET - drive, 22 teeth

1шт.

1

90899C1

DRIVE SPROCKET

SPROCKET - drive, 24 teeth

1шт.

1

90900C1

DRIVE SPROCKET

SPROCKET - drive, 28 teeth

1шт.

1

90901C1

DRIVE SPROCKET

SPROCKET - drive, 30 teeth

1шт.

1

90902C1

DRIVE SPROCKET

SPROCKET - drive, 32 teeth

1шт.

1

90903C1

DRIVE SPROCKET

SPROCKET - drive, 34 teeth

1шт.

1

90904C1

SPROCKET ASSY.

SPROCKET - drive, 36 teeth

1шт.

2

140932C2

SPACER

- sprocket

1шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

1шт.

4

A30338

PIN

- lock

2шт.

5

134142C1

BAR

SHAFT - drive, hex, 22 (7/8) x 269 mm (10-19/32 inch) long

1шт.

8

140931C1

HUB

- sprocket

1шт.

9

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

2шт.

10

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

11

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch (Trailing 6 row narrow and 4 row)

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

13

137203C4

SUPPORT

- speed change

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Trailing 6 row narrow and 4 row) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

14

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch (All except trailing 6 row narrow and 4 row)

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

16

141781C1

BRACKET

- sprocket storage

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Cyclo Air vertical folding 12 row narrow)

1шт.

21

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Cyclo Air vertical folding 12 row narrow)

1шт.

22

231-5146

FLANGE NUT,3/8"-16

Cyclo air vertical folding 12 row narrow Flg, USR, 3/8"-16

1шт.

23

591107R1

COTTER PIN

- cotter, hair

1шт.

24

96032C1

BAR ASSY.

BAR - chain idler

2шт.

25

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

26

125-10007

NUT,1/2"-13, G5, LH

- hex, left-hand thread, 1/2 inch NC

2шт.

30

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

31

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

32

432-1216

COTTER PIN,3/16" x 1"

4шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - input speed change (Use 109 links from bulk chain 1790D, and 1 connecting link 1301D)

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

36

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth, speed change

1шт.

REF

INSTRUCTION

DRIVE - seed

1шт.

37

144812C2

SPACER

- 27 x 33 x 17 mm (All except trailing 6 row narrow and 4 row)

1шт.

37

90794C2

SPACER

- double sprocket, 41 mm (1-39/64 inch) (Trailing 6 row narrow and 4 row)

1шт.

40

134157C91

BALL BEARING,15.88mm ID

- ball, 5/8 inch, sealed, hex

1шт.

41

REF

INSTRUCTION

BAR - drive, hex, 16 mm (5/8 inch) (See secondary seed drives)

1шт.

42

137204C2

SPACER

BUSHING - shear pin

2шт.

43

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

44

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output

1шт.

45

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - output speed change (Use 87 links from bulk chain 1790D, and 1 connecting link 241-1314)

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.
