(9-286) - GRANULAR CHEMICAL ATTACHMENT DRIVE, PLATE TYPE UNIT PLANTERS W/PRESS-WHEEL DRIVE ROW UNITS

Запчасти Case IH 900 (9-286) - GRANULAR CHEMICAL ATTACHMENT DRIVE, PLATE TYPE UNIT PLANTERS W/PRESS-WHEEL DRIVE ROW UNITS (09) - CHASSIS/ATTACHMENTS

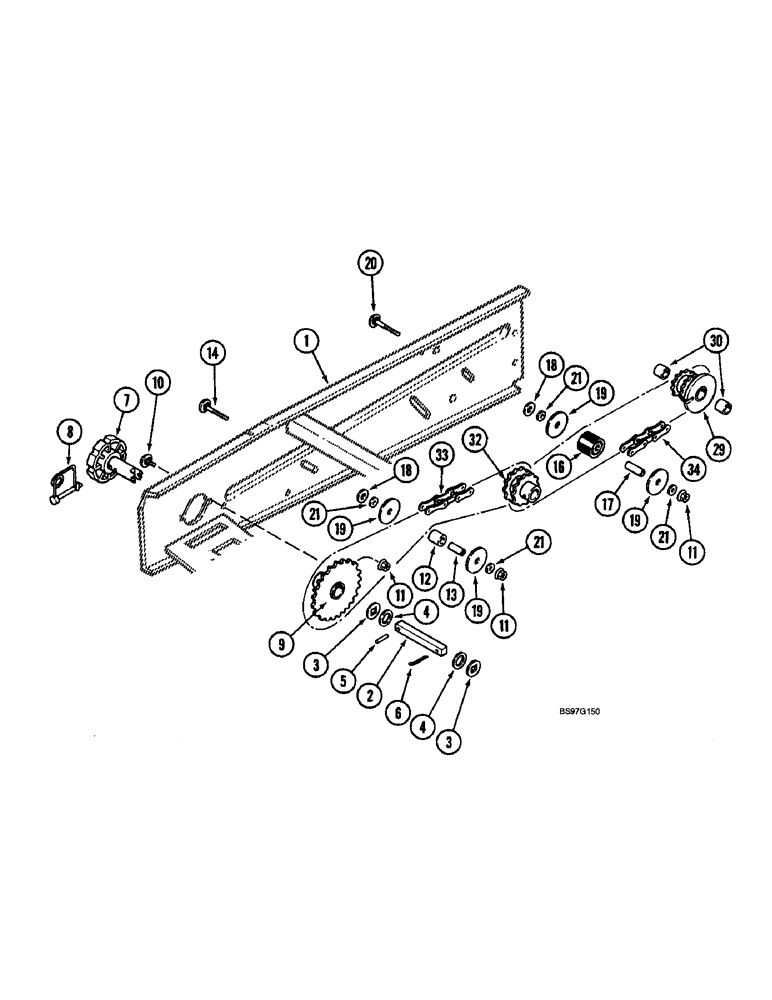

Схема запчастей Case IH 900 - (9-286) - GRANULAR CHEMICAL ATTACHMENT DRIVE, PLATE TYPE UNIT PLANTERS W/PRESS-WHEEL DRIVE ROW UNITS (09) - CHASSIS/ATTACHMENTS
19
30
19
1
8
7
11
4
3
11
17
16
5
3
19
6
21
2
18
10
21
33
29
34
12
4
13
20
11
14
18
32
21
21
9
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FRAME - hopper support (See Page 9-289)

1шт.

2

134254C2

BAR

- drive

1шт.

3

134253C1

SQ HOLE WASHER

- square hole flat, 19/32 x 1-1/4 x 1/16 inch

2шт.

4

95-81049

WASHER,57/64" x 1 1/4" x .036"

- flat, 29/32 x 1-1/2 x 1/32 inch

1шт.

5

438-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

6

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

1264422C92

BUTTON

KNOB ASSEMBLY - drive

1шт.

7

145153C2

KNOB

- drive

1шт.

8

140933C2

PIN

- quick release

1шт.

9

136947C91

SPROCKET ASSY.

SPROCKET - drive, 30 teeth

1шт.

10

412-510

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - carriage, 5/16 NC x 5/8 inch, grade 2

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

141653C1

ROLLER

- drives

1шт.

13

1268263C1

SPACER

- roller

1шт.

14

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT - carriage, 5/16 NC x 2 inch

1шт.

16

57796C1

ROLLER

- chain tightener

1шт.

17

134288C1

SPACER

- roller

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

19

495-81166

WASHER,17/32" x 2" x .060"

Flat 17/32" x 2" x .060"

2шт.

20

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

BOLT - carriage, 5/16 NC x 2-1/4 inch

1шт.

21

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

29

1279285C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 teeth

1шт.

30

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - sprocket

2шт.

32

1254329C2

SPROCKET ASSY.

SPROCKET - drive

1шт.

33

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 97 links from bulk chain 475879R91, 1 connecting link 241-2314, and 3 offset links 241-2714)

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 69 links from bulk chain 475879R91, 1 connecting link 241-2314, and 3 offset links 241-2714)

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-2714

LINK,12.7mm Pitch

LINK - offset, single pitch, No. 41, 1/2 inch pitch

1шт.
