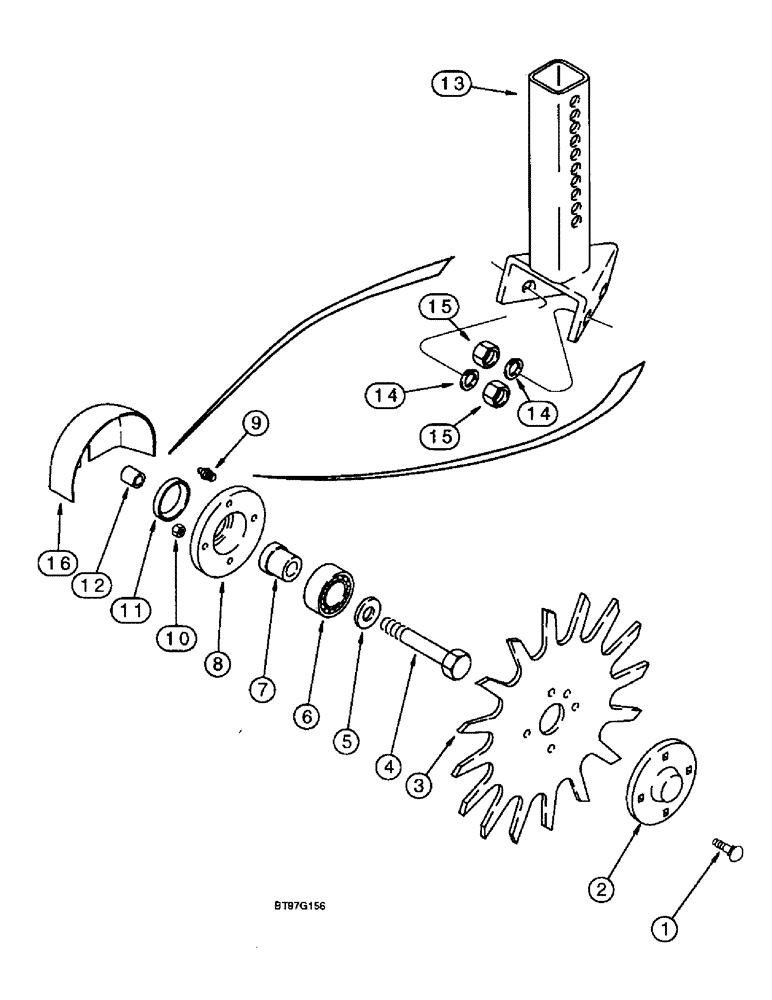

Запчасти Case IH 900 (9-295A) - RESIDUE MANAGER, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

1

433-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

BOLT - carriage, 5/16 NC x 1-1/2 inch

8шт.

2

108130A1

HUB CAP

CAP - hub

2шт.

3

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

- spoked, 13 inch

2шт.

4

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, special

2шт.

5

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

- flat, 1-1/2 x 21/32 x 3/16 inch

2шт.

6

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

- special

2шт.

7

108135A1

INSERT

- bearing

2шт.

8

108136A1

HUB

- bearing, residue manager wheel

2шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

10

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

11

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

- hub

2шт.

12

108139A1

SPACER

- 3/4 inch

2шт.

13

135601A3

STEM

BRACKET - mounting, residue manager

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

425-1010

NUT,5/8"-11, G5

2шт.

16

133801A2

BEARING COVER

- bearing

1шт.
