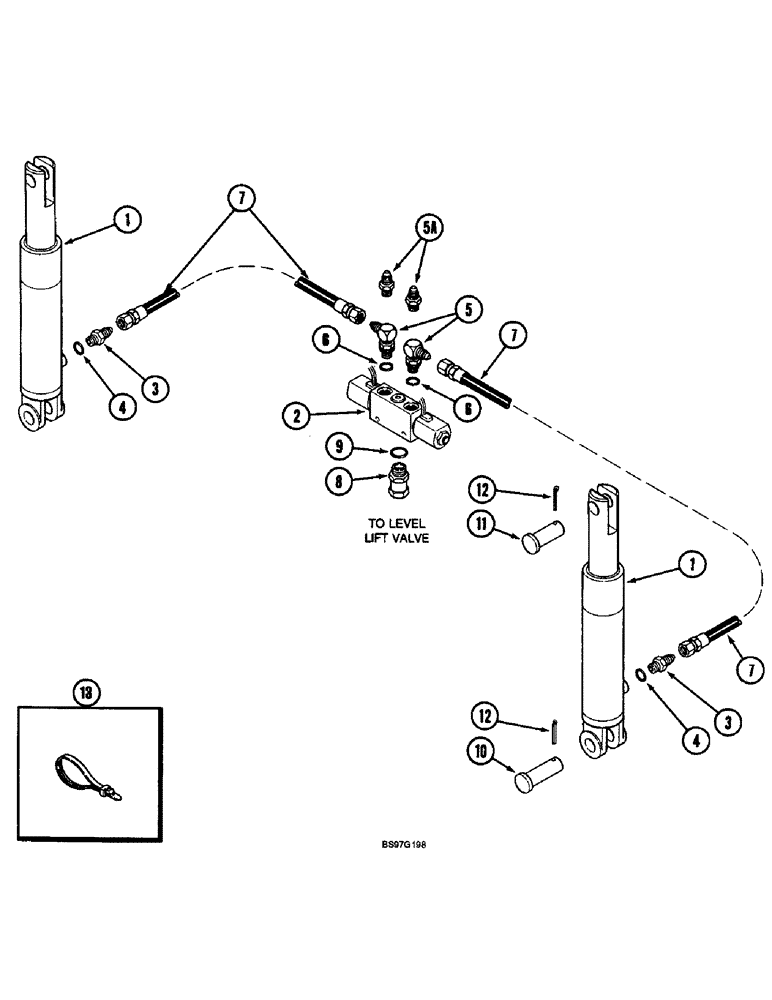

Запчасти Case IH 900 (8-004) - ROW MARKER HYDRAULIC SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker (See Page 8-67 for correct cylinder)

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - marker (See Page 8-117 for correct valve)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss (12 row narrow)

2шт.

5a

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (6 row wide and 8 row)

2шт.

7

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long (6 row wide and 8 row narrow)

2шт.

7

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 4572 mm (180 inch) long (8 row wide)

2шт.

7

1264171C1

HYDRAULIC HOSE,6.40 mm ID x 5590.00 mm, SAE 100R1

HOSE - 5460 mm (215 inch) long (12 row narrow)

2шт.

8

66895C1

FITTING

UNION - 7/8-14 female flared x 7/8-14 inch male O-ring boss

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

11

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2

2шт.

12

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
