(8-014) - ROW MARKER HYDRAULIC SYSTEM, PLATE VERTICAL FOLDING, 8 ROW WIDE

Запчасти Case IH 900 (8-014) - ROW MARKER HYDRAULIC SYSTEM, PLATE VERTICAL FOLDING, 8 ROW WIDE (08) - HYDRAULICS

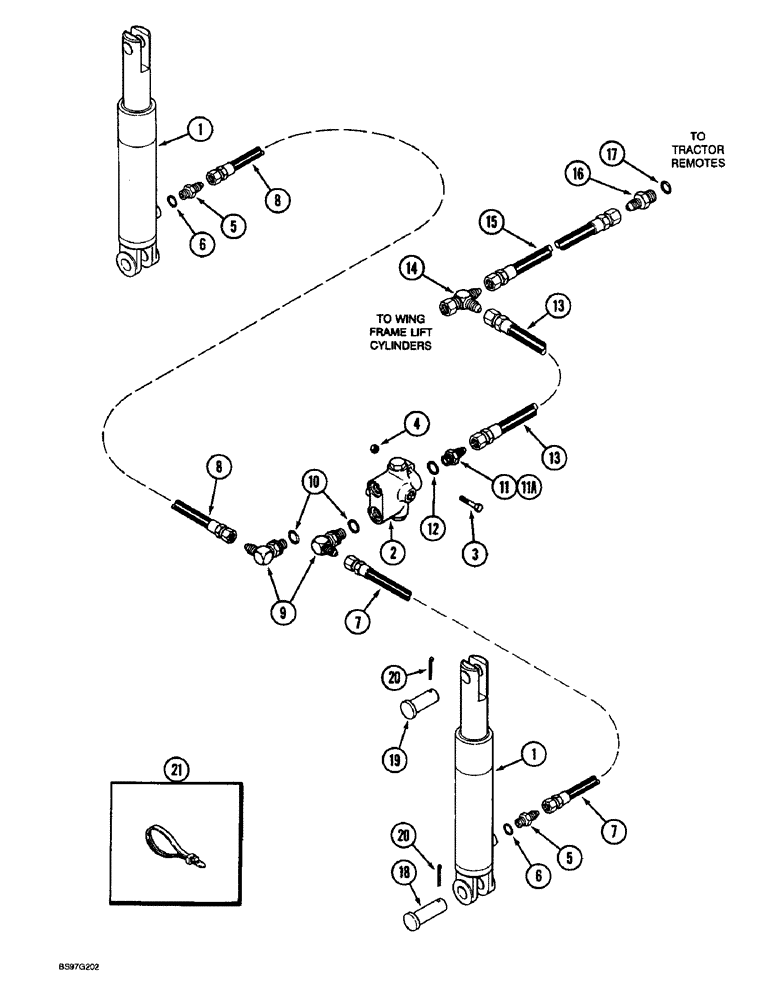

Схема запчастей Case IH 900 - (8-014) - ROW MARKER HYDRAULIC SYSTEM, PLATE VERTICAL FOLDING, 8 ROW WIDE (08) - HYDRAULICS
7
15
1
1
5
6
2
5
6
3
8
11a
12
13
14
8
10
13
11
19
18
16
7
9
20
17
21
20
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - row marker (See Pages 8-67 and 8-69 for correct cylinder)

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - row marker (See Page 8-115 for correct valve)

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

7

1261401C1

HOSE,6.40 mm ID x 5200.00 mm, SAE 100R1

1шт.

8

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 4572 mm (180 inch) long

1шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

11a

93207C1

HYD CONNECTOR

CONNECTOR - restrictor, 1/2 inch tube

1шт.

Restrictor assembly is alternative part for proper operation of marker valve by tractor with high hydraulic flow rate.

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

90875C1

HYDRAULIC HOSE

HOSE - 737 mm (29 inch) long

1шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

15

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

19

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2

2шт.

20

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

21

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
