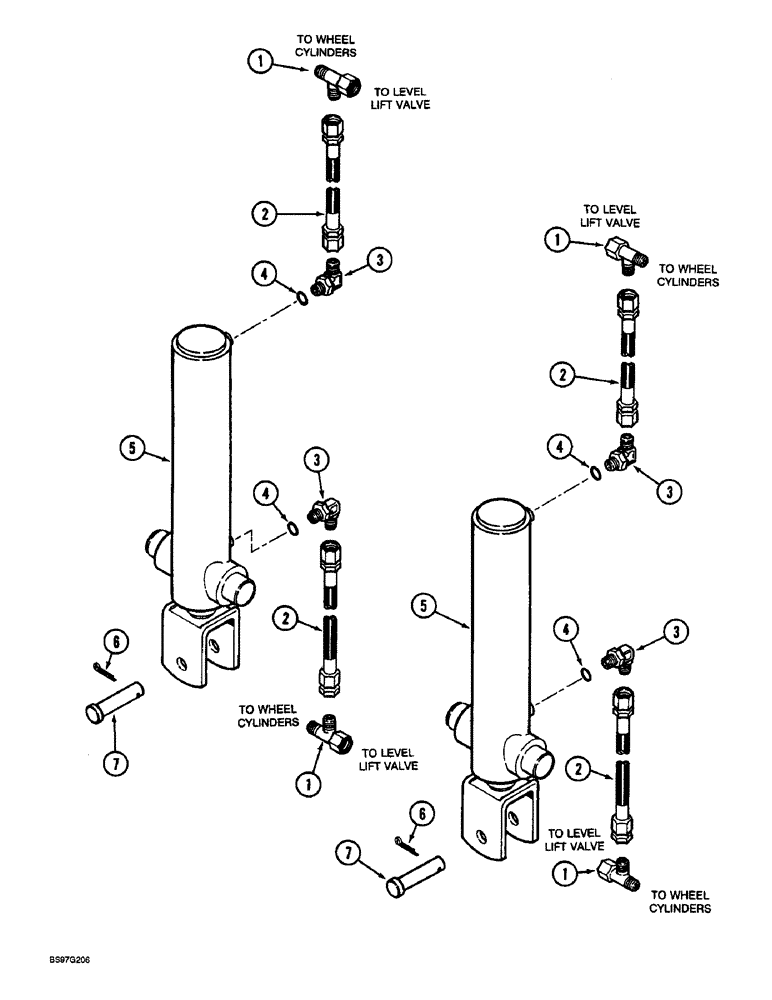

Запчасти Case IH 900 (8-026) - AUXILIARY DRIVE/CARRYING WHEEL HYDRAULIC SYSTEM, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

4шт.

2

1317971C1

HOSE ASSY.

HOSE - 1100 mm (43-5/16 inch) long

4шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

4шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 254 mm (10 inch) stroke (See Page 8-77 for correct cylinder)

2шт.

6

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

7

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN - headed, 3/4 x 3-1/4 inch

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
