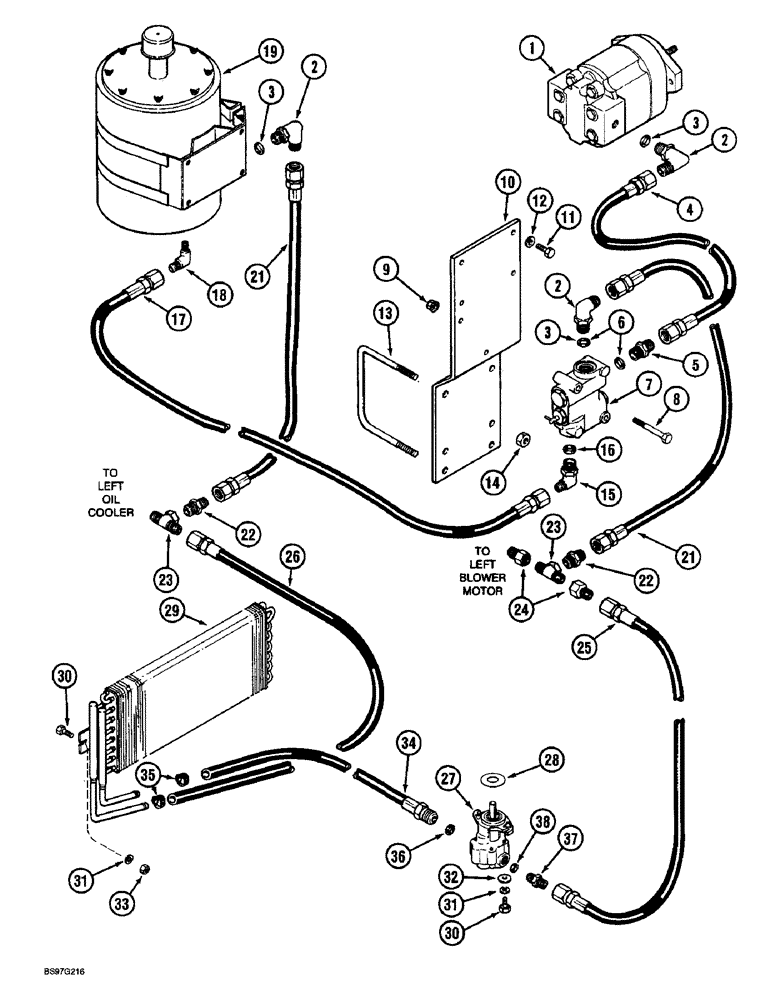

Запчасти Case IH 900 (8-050) - BLOWER PUMP HYDRAULIC SYSTEM, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Pages 8-145 and 8-147 for correct pump assembly)

1шт.

1a

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring boss, used with reman pump 1949282C1, not shown, see page 8-145

1шт.

1b

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, not shown

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

3шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

58940C1

HOSE,19.05mm ID x 1219.2mm L

0.75" ID x 48.00"

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

127743C91

VALVE

ASSEMBLY - flow control (See Page 8-135)

1шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

149428C2

BAR

PLATE - mounting

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC, 5 x 7 inch

2шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long

1шт.

18

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

19

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (See Page 8-149)

1шт.

21

1264453C1

HYDRAULIC HOSE,19.05 mm ID x 4955.00 mm

2шт.

22

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

2шт.

23

218-858

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 swivel branch x 7/8-14 inch flare x flare

2шт.

24

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

2шт.

25

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

(Right Hand Blower Motor) 12.70 mm ID x 2540.00 mm, SAE 100R1

1шт.

25a

91207C1

HYDRAULIC HOSE,12.70 mm ID x 3300.00 mm, SAE 100R1

(Left-Hand Blower Motor) Not Shown 12.70 mm ID x 3300.00 mm, SAE 100R1

1шт.

26

141501C1

HOSE,0.50" ID x 96.00"

- 2438 mm (96 inch) long (right-hand oil cooler)

1шт.

26a

60801C1

HOSE,0.50" ID x 130.00", SAE 30R2, SAE 100R6

(LH oil cooler) not shown 0.50" ID x 130.00", SAE 30R2, SAE 100R6

1шт.

27

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-147)

2шт.

27

1272056C92R

REMAN-HYD MOTOR

900 - CASE IH PLANTER, N.A. Only

2шт.

27

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

28

1985956C1

GASKET

- motor

2шт.

29

1265677C1

OIL COOLER

COOLER - oil

2шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

31

492-11038

LOCK WASHER,3/8"

8шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

33

425-106

NUT,3/8"-16, Cl 5

4шт.

34

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

35

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

37

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
