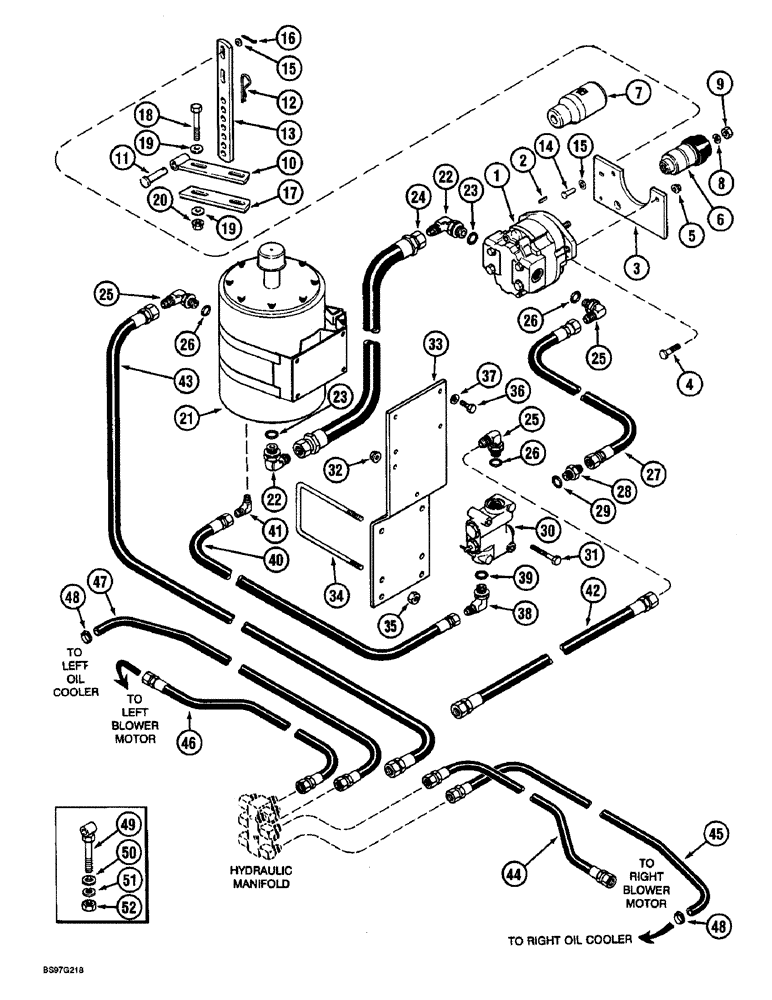

Запчасти Case IH 900 (8-058) - BLOWER PUMP HYDRAULIC SYSTEM, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, new (See Pages 8-145 and 8-147 for correct pump assembly)

1шт.

1a

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring boss, used with reman pump 1949282C1, not shown, see page 8-145

1шт.

1b

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, not shown

1шт.

2

177192C1

KEY

- shaft

1шт.

3

56773C2

PLATE

- pump mounting

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

6

1279355C91

COUPLING

COUPLER ASSEMBLY - pump, 1-3/8 inch spline (See Page 8-53)

1шт.

7

1277794C91

ADAPTER

COUPLER ASSEMBLY - pump, 1-3/4 inch spline (See Page 8-53)

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

10

1254128C1

STRAP

- retaining, upper

1шт.

11

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

1шт.

12

1978738C1

HAIR PIN COTTER

3/16"

1шт.

13

56774C1

BRACKET

- adjusting

1шт.

14

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

15

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

4шт.

16

432-1216

COTTER PIN,3/16" x 1"

2шт.

17

56776C1

BAR

STRAP - retaining, lower

1шт.

18

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (See Page 8-149)

1шт.

22

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

24

58159C2

HOSE,31.75mm ID x 1371.6mm L

1.25" ID x 54.00"

1шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

3шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

58940C1

HOSE,19.05mm ID x 1219.2mm L

0.75" ID x 48.00"

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

127743C91

VALVE

ASSEMBLY - flow control (See Page 8-135)

1шт.

31

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

149428C2

BAR

PLATE - mounting

1шт.

34

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT - 5/8 inch NC, 5 x 8 inch

2шт.

35

425-1010

NUT,5/8"-11, G5

4шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

37

492-11038

LOCK WASHER,3/8"

4шт.

38

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long, bypass

1шт.

41

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

42

1286447C1

HYDRAULIC HOSE

HOSE - 3070 mm (120-7/8 inch) long, pressure

1шт.

43

1254548C1

HYDRAULIC HOSE

HOSE - 3048 mm (120 inch) long, return

1шт.

44

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

Pressure (Right-Hand Blower Motor) 12.70 mm ID x 4320.00 mm, SAE 100R1

1шт.

45

1333799C1

HYDRAULIC HOSE,12.70 mm ID x 4500.00 mm, SAE 30R2 or SAE 100R6

Return (Right-Hand Oil Cooler) Not Shown 12.70 mm ID x 4500.00 mm, SAE 30R2 or SAE 100R6

1шт.

46

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

Pressure (Left-Hand Blower Motor) 12.70 mm ID x 5335.00 mm, SAE 100R1

1шт.

47

1333800C1

HYDRAULIC HOSE,12.70 mm ID x 5800.00 mm, SAE 30R2 or SAE 100R6

Return (Left-Hand Oil Cooler) 12.70 mm ID x 5800.00 mm, SAE 30R2 or SAE 100R6

1шт.

48

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

49

1958312C1

ANCHOR

BOLT - special, 5/8 NC x 3-1/2 inch (Use instead of items 10 and 17 as required)

1шт.

50

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, hardened

1шт.

51

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

52

425-1010

NUT,5/8"-11, G5

1шт.
