(8-062) - QUICK-FILL AUGER HYDRAULIC SYSTEM, TRAILING PLANTERS, ALL EXCEPT 6 ROW WIDE

Запчасти Case IH 900 (8-062) - QUICK-FILL AUGER HYDRAULIC SYSTEM, TRAILING PLANTERS, ALL EXCEPT 6 ROW WIDE (08) - HYDRAULICS

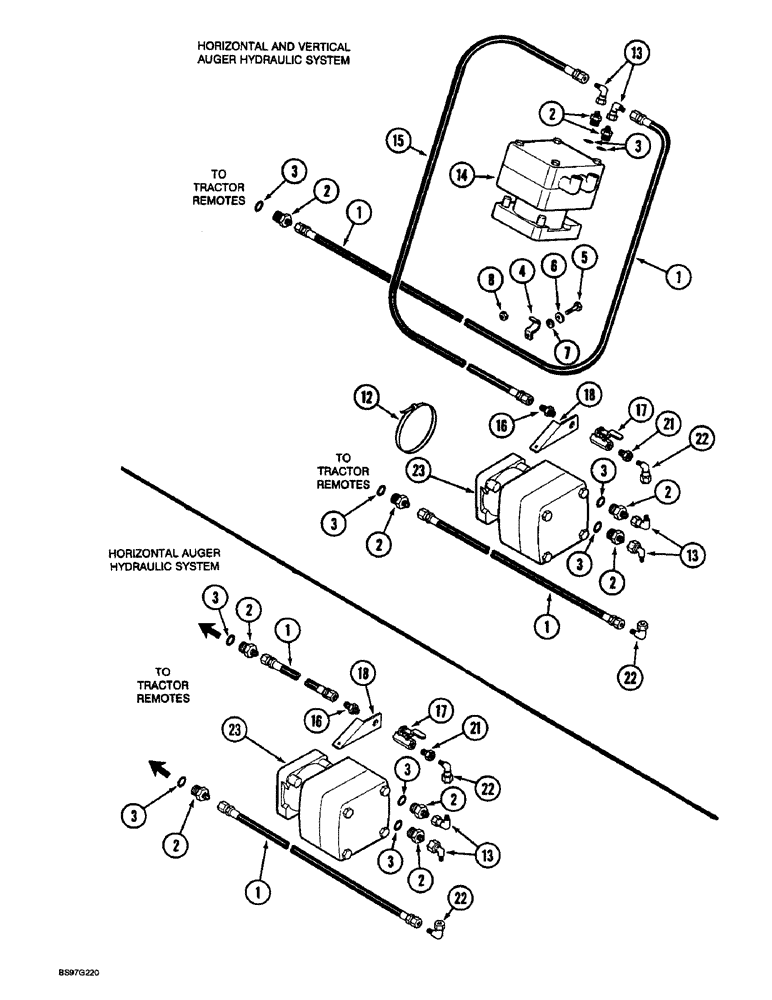

Схема запчастей Case IH 900 - (8-062) - QUICK-FILL AUGER HYDRAULIC SYSTEM, TRAILING PLANTERS, ALL EXCEPT 6 ROW WIDE (08) - HYDRAULICS
1
17
13
2
15
8
1
2
1
3
2
3
23
18
16
2
22
16
2
3
2
22
2
22
2
14
3
21
21
3
18
1
12
3
23
22
6
3
1
4
2
3
7
13
13
5
3
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1284292C1

HYDRAULIC HOSE

HOSE - 6223 mm (245 inch) long (6 row narrow and 4 row)

2шт.

1

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

HOSE - 6985 mm (275 inch) long (8 row narrow)

2шт.

1

1284302C1

HYDRAULIC HOSE

HOSE - 8382 mm (330 inch) long (8 row wide)

2шт.

1

1284299C1

HYDRAULIC HOSE

HOSE - 8890 mm (350 inch) long (12 row wide)

2шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

4-6шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

468256R1

CLAMP

- hose retaining

4шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

12

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

3шт.

13

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2-4шт.

14

90892C1

MOTOR

- auger, vertical

1шт.

P/N 90892C1, 1279313C1, 90893C1 and 90891C1 are available only through Kasco Co.

1шт.

15

129672C2

HYDRAULIC HOSE

HOSE - 991 mm (39 inch) long, used when vertical auger motor is installed in addition to horizontal auger motor

1шт.

16

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

17

1279313C1

VALVE

- shutoff

1шт.

P/N 90892C1, 1279313C1, 90893C1 and 90891C1 are available only through Kasco Co.

1шт.

18

90893C1

ANCHOR

BRACKET - mounting, shutoff valve

1шт.

P/N 90892C1, 1279313C1, 90893C1 and 90891C1 are available only through Kasco Co.

1шт.

21

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

22

90891C1

ELBOW

- special, 90 degree

2шт.

P/N 90892C1, 1279313C1, 90893C1 and 90891C1 are available only through Kasco Co.

1шт.

23

90892C1

MOTOR

- auger, horizontal

1шт.

P/N 90892C1, 1279313C1, 90893C1 and 90891C1 are available only through Kasco Co.

1шт.
