(8-076) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, RETAINING RING TYPE CYLINDER

Запчасти Case IH 900 (8-076) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, RETAINING RING TYPE CYLINDER (08) - HYDRAULICS

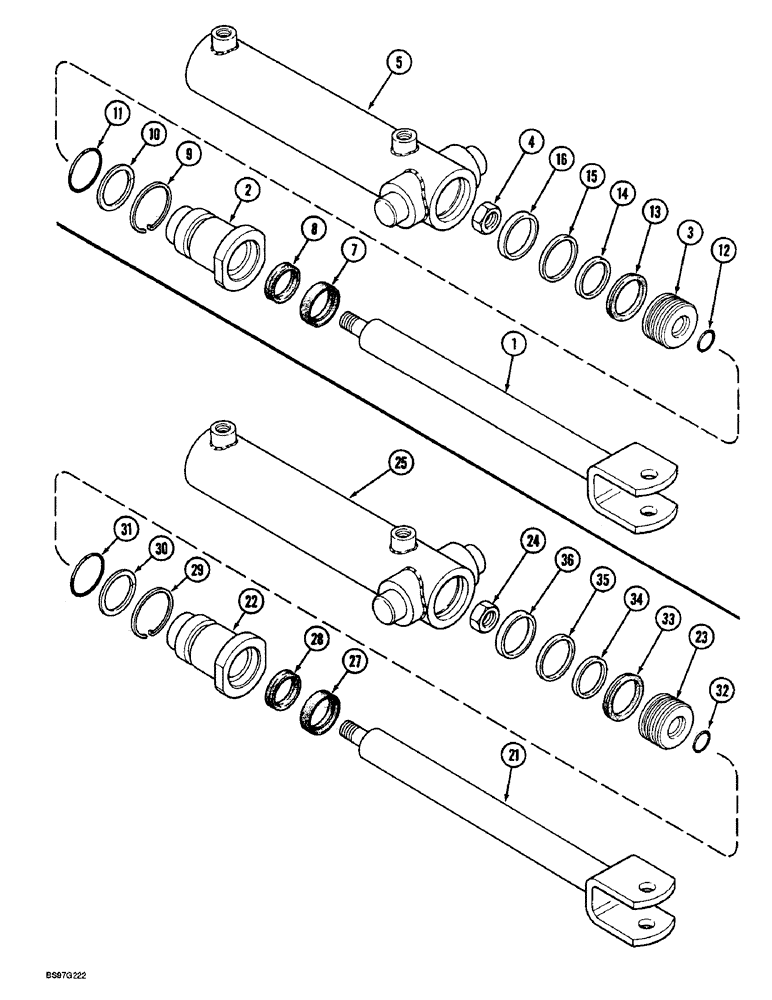

Схема запчастей Case IH 900 - (8-076) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, RETAINING RING TYPE CYLINDER (08) - HYDRAULICS
22
13
29
25
1
12
21
5
14
16
28
33
35
10
32
4
30
7
27
3
9
8
11
15
31
34
36
23
2
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

93273C1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 254 mm (10 inch) stroke, wheel (P.I.N. 3501 and after) (6 used on 12 row narrow) no longer available, order 1343687C1 cylinder assembly on page 8-79

4-6шт.

1

140624C2

ROD

- cylinder

1шт.

2

1954149C1

HEAD

- cylinder, front

1шт.

3

1954148C1

PISTON

- cylinder

1шт.

4

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

1954150C1

SEAL KIT

- seal

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, outer

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

92777C1

CYLINDER

ASSEMBLY - 57 (2-1/4) ID x 254 mm (10 inch) stroke, wheel (Prior to P.I.N. 3501) (6 used on 12 row narrow)

4-6шт.

21

140624C2

ROD

- cylinder

1шт.

22

140626C1

HEAD

GLAND - cylinder, front

1шт.

23

92784C1

PISTON

- cylinder

1шт.

24

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

1286386C1

SEAL KIT

KIT - seal

1шт.

27

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

29

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

30

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 ID x 3/16 inch

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 1/16 inch

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

34

NSS

NOT SOLD SEPARAT

RING - seal, rectangular, 1-13/16 ID x 3/32 inch

1шт.

35

NSS

NOT SOLD SEPARAT

RING - seal, outer

1шт.

36

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.
