(8-078) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, TIE BOLT TYPE CYLINDER

Запчасти Case IH 900 (8-078) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, TIE BOLT TYPE CYLINDER (08) - HYDRAULICS

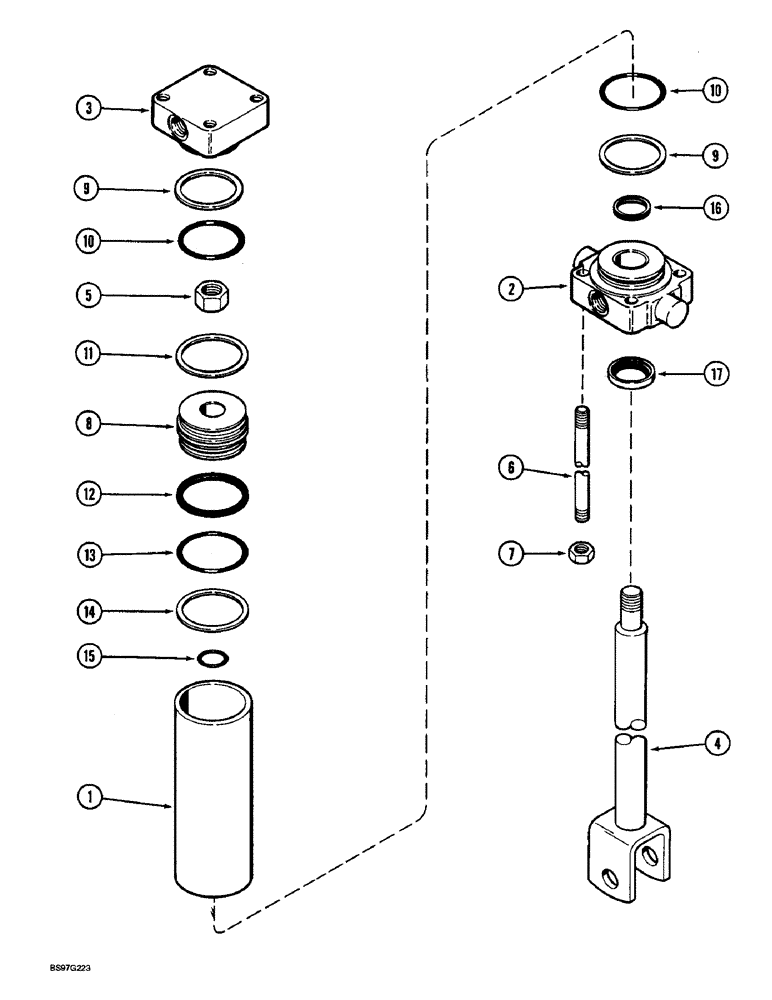

Схема запчастей Case IH 900 - (8-078) - DRIVE/CARRYING WHEEL HYDRAULIC CYLINDER, TIE BOLT TYPE CYLINDER (08) - HYDRAULICS
16
7
8
6
10
9
3
12
1
4
17
15
2
10
5
13
9
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1343687C1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 254 mm (10 inch) stroke, wheel

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

2

1346472C1

HEAD

- front

1шт.

3

1346469C1

HEAD (CYLINDER)

HEAD - rear

1шт.

4

1346470C1

STEM

ROD - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

6

1346473C1

ROD

STUD - tie, cylinder

4шт.

7

NSS

NOT SOLD SEPARAT

NUT - tie stud

4шт.

8

1346471C1

PISTON

- cylinder

1шт.

1346474C1

SEAL KIT

- seal, repair

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - front and rear, Serial Range: head-body

2шт.

11

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

16

NSS

NOT SOLD SEPARAT

U-CUP - front head

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.
