(8-128) - FLOW DIVIDER AND SEQUENCING VALVE ASSEMBLY, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES

Запчасти Case IH 900 (8-128) - FLOW DIVIDER AND SEQUENCING VALVE ASSEMBLY, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

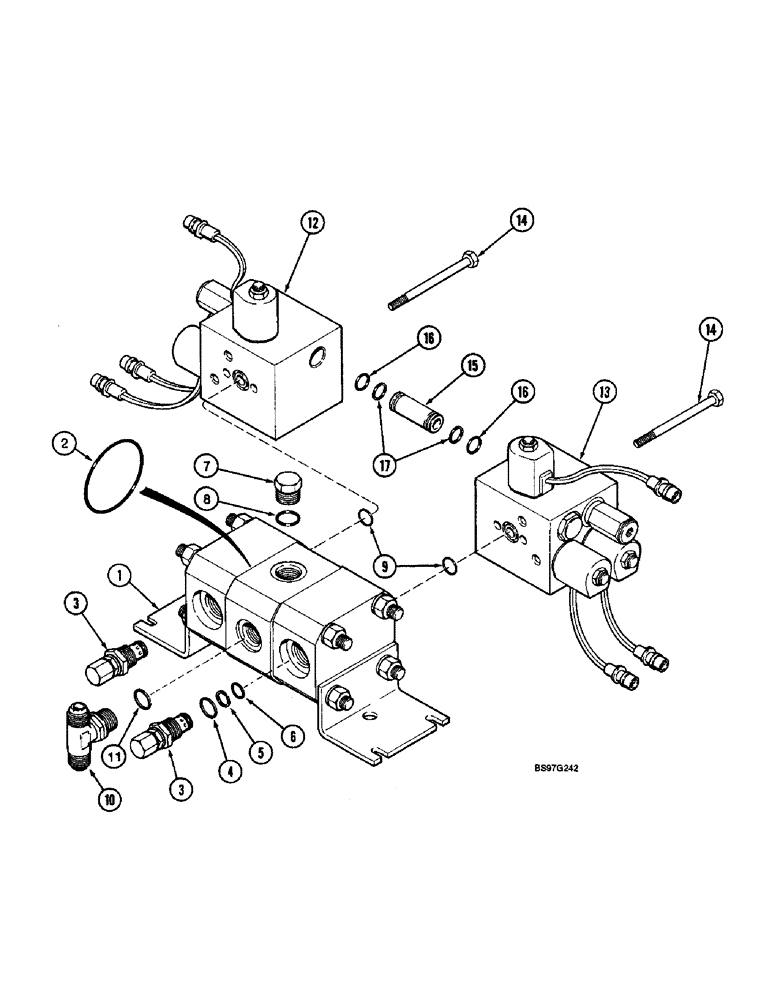

Схема запчастей Case IH 900 - (8-128) - FLOW DIVIDER AND SEQUENCING VALVE ASSEMBLY, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS
3
16
8
5
3
4
2
1
11
12
10
17
6
14
16
13
14
15
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1260823C91

VALVE

ASSEMBLY - flow divider, not available as an assembly, order components

1шт.

1

142843C93

VALVE

ASSEMBLY - flow divider

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

2шт.

3

149932C1

VALVE

ASSEMBLY - relief

2шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - va1ve

1шт.

7

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

10

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adj O-ring branch x flare x flare

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

1255327C91

BLOCK

VALVE ASSEMBLY - sequencing (See Page 8-131)

1шт.

13

1255326C91

BLOCK

VALVE ASSEMBLY - sequencing (See Page 8-133)

1шт.

14

413-566

BOLT,Hex, 5/16" - 18 x 4-1/8", Gr 5

- hex

4шт.

15

1255318C2

TUBE,19.05 mm OD, 53.5" Length

- junction

1шт.

16

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

17

544795R1

WASHER

RING - backup

2шт.
