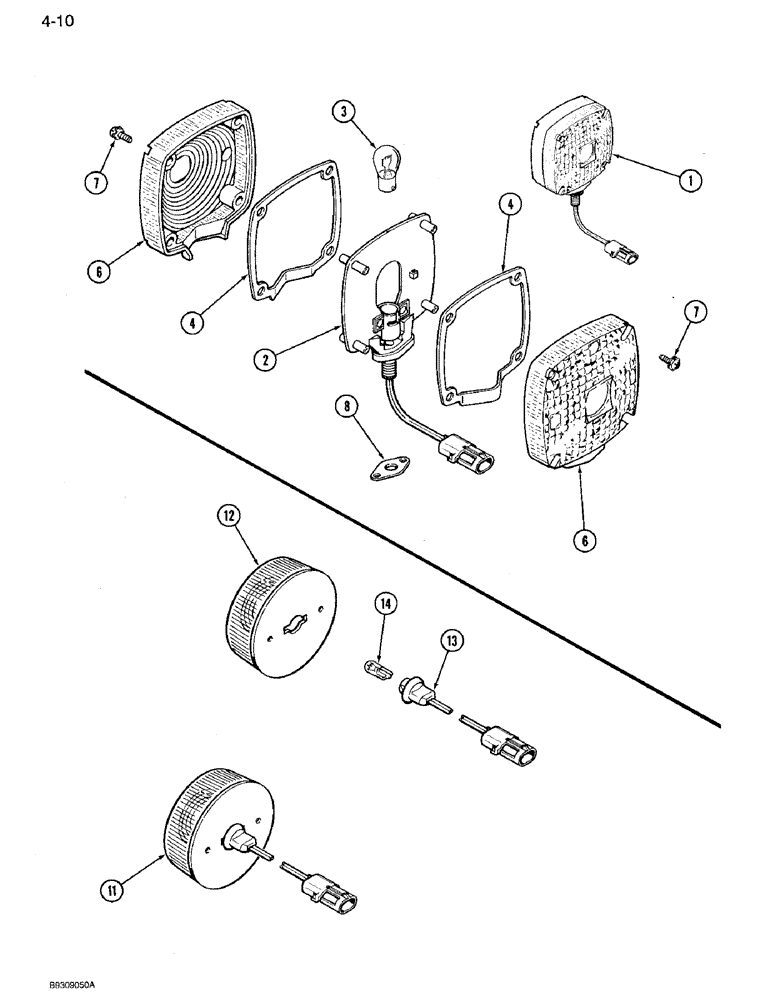

Запчасти Case IH 950 (4-10) - TURN SIGNAL LAMP (04) - ELECTRICAL SYSTEMS

1

91913C91

LIGHT

LAMP ASSEMBLY - turn signal

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order 91913C91)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A43731

GASKET

- lens

2шт.

A44202

KIT

- lens, lamp

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - lamp, amber

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips, No. 8-32 x 3/4 inch

8шт.

8

F63435

GASKET

- lamp mounting

1шт.

11

91986C91

LIGHT

LAMP ASSEMBLY - tail

1шт.

12

NSS

NOT SOLD SEPARAT

BASE - lamp (Order 91986C91) TAIL

1шт.

13

91934C1

SOCKET

ASSEMBLY - bulb TAIL LAMP

1шт.

14

D71346

TAIL LAMP,12V

BULB - lamp, No. 168 TAIL

1шт.
