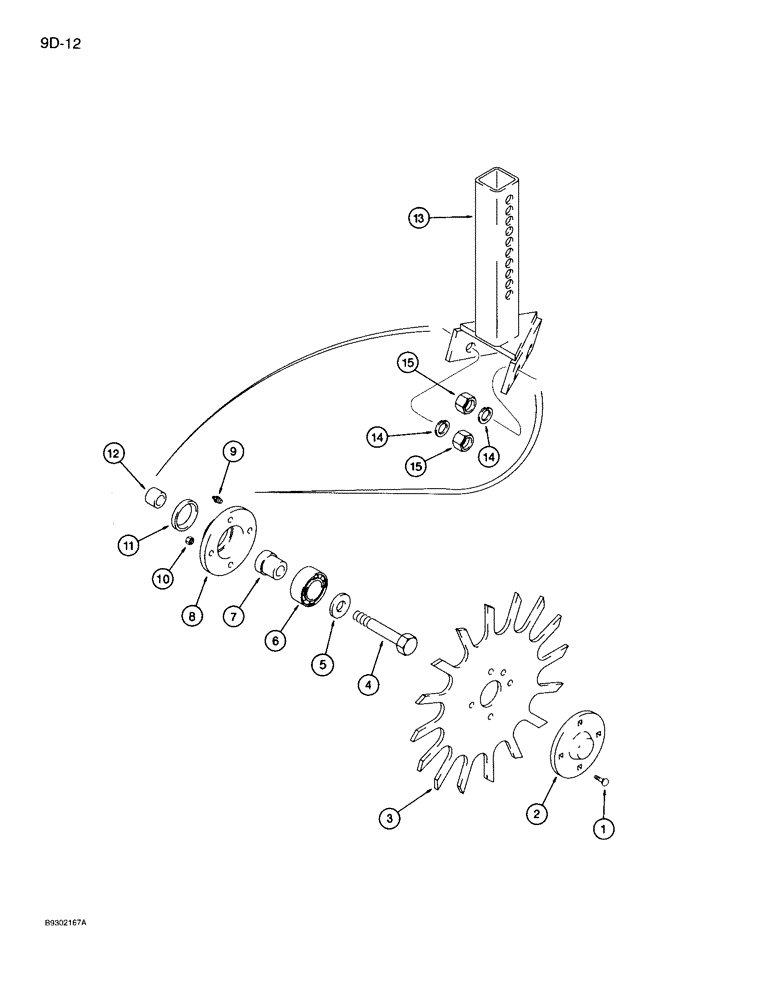

Запчасти Case IH 950 (9D-12) - RESIDUE MANAGER (09) - CHASSIS/ATTACHMENTS

1

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

16шт.

2

108130A1

HUB CAP

CAP - hub casting

4шт.

3

108131A1

WHEEL

- spoked, 13 inch

4шт.

4

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

5

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

- flat, 1-1/2 x 21/32 x 3/16 inch

4шт.

6

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

- double row

4шт.

7

108135A1

INSERT

- bearing

4шт.

8

108136A1

HUB

- residue manager wheel

4шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

10

231-4115

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

16шт.

11

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

- hub

4шт.

12

108139A1

SPACER

- 3/4 inch

4шт.

13

108140A1

STEM

- residue manager

2шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.
