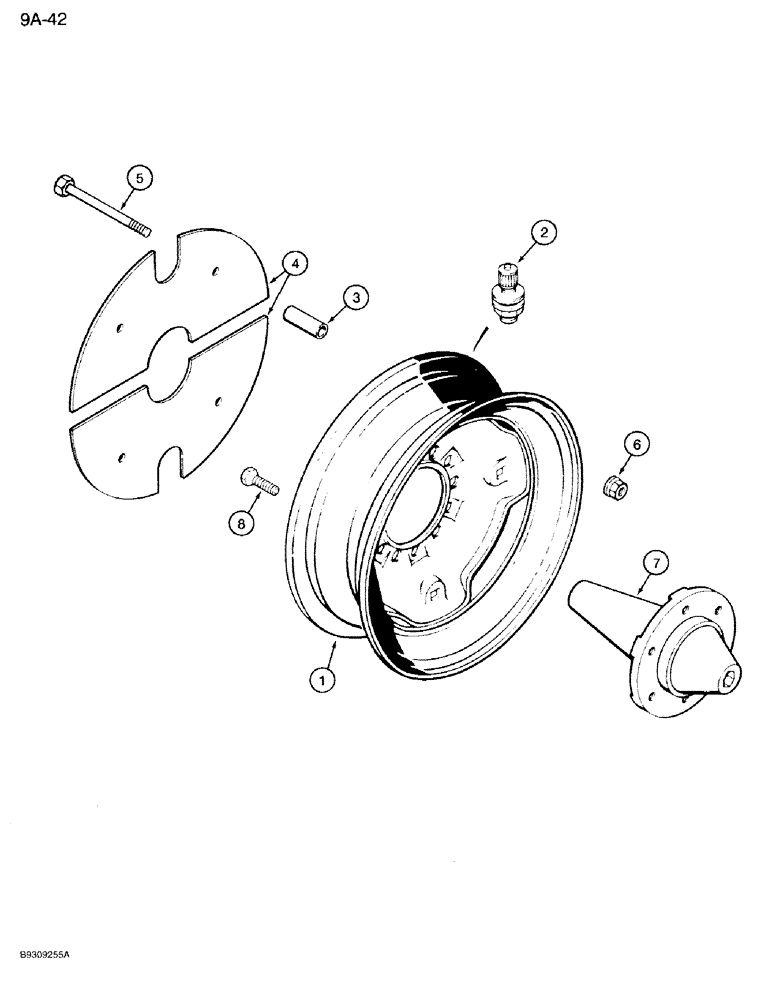

Запчасти Case IH 950 (9A-42) - DRIVE/CARRYING WHEELS, ALL RIGID PLANTERS, 14 INCH WHEELS, RIGID WIDE ROW PLANTERS (09) - CHASSIS/ATTACHMENTS

1

481344R91

WHEEL

- 14 inch (For 9.5L x 14 high flotation tire)

1шт.

2

810768C1

VALVE

- wheel

1шт.

3

1333828C1

SPACER

- 3-1/8 inch, cover

4шт.

3

1333829C1

SPACER

- 3-3/4 inch, cover

4шт.

4

1333824C1

COVER

- wheel

4шт.

5

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

4шт.

6

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

7

90343C1

HUB

- wheel

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

1

T53527

WHEEL

- 15 inch (For 7.60 x 15, 6-ply tire), rigid narrow row planters

1шт.

1

T53527

WHEEL

- 15 inch (For 7.60 x 15, 6-ply tire), rigid narrow row planters

1шт.

2

810769C1

VALVE

- wheel, 15" rigid narrow row planters

1шт.

3

1264481C1

SPACER,1/2" Pipe x 2.441"

- cover, 15" wheel rigid narrow row planters

8шт.

4

1264480C1

COVER

- 15" wheel rigid narrow row planters

4шт.

5

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch, 15" wheel rigid narrow row planters

4шт.

6

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC, 15" wheel rigid narrow row planters

4шт.

7

90343C1

HUB

- 15" wheel rigid narrow row planters

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch, 15" wheel rigid narrow row planters

6шт.
