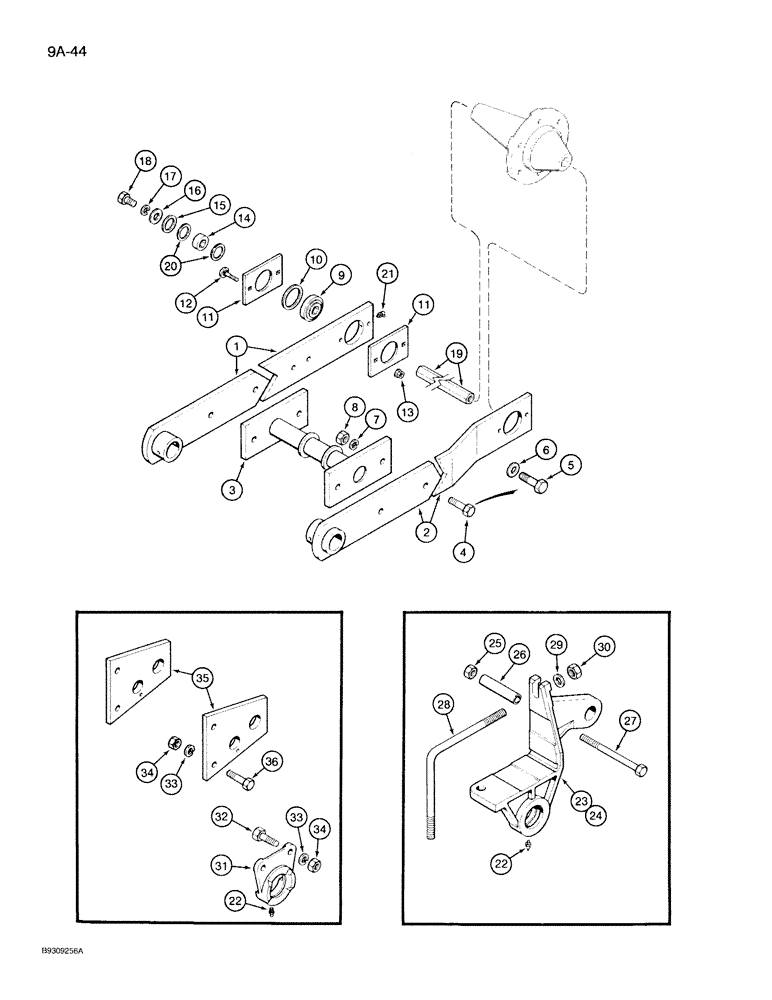

Запчасти Case IH 950 (9A-44) - DRIVE/CARRYING WHEEL MOUNTING, ALL RIGID PLANTERS, COMMON TO ALL RIGID MODELS (09) - CHASSIS/ATTACHMENTS

1

91247C2

RAIL

- wheel, straight, outer

1шт.

2

91254C2

RAIL

- wheel, offset inner

1шт.

3

91242C2

CABLE TIE

FRAME - wheel mounting

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

128280A1

BALL BEARING,25.43mm Hex x 62.12mm OD x 24mm W

BEARING - ball

2шт.

10

1279743C1

WASHER

- bearing

2шт.

11

1250724C1

BAR

BRACKET - bearing

4шт.

12

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

90376C1

SPACER

- sprocket

1шт.

15

149356C2

SPACER

- axle (Used in place of sprocket)

1шт.

16

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - hex, 5/8 x 1-1/2 inch, special

2шт.

19

90341C3

AXLE

- wheel

1шт.

20

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

6шт.

21

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 self tap x 13/16 inch

1шт.

22

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

23

95832C2

BRACKET

- wheel and cylinder mounting, left-hand, 6 row wide rigid

1шт.

24

95833C2

BRACKET

- wheel and cylinder mounting, right-hand, 6 row wide rigid

1шт.

25

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, 6 row wide rigid

1шт.

26

95911C1

TUBE

SPACER - wheel bracket tie, 6 row wide rigid

1шт.

27

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch, 6 row wide rigid

1шт.

28

141025C2

BOLT

L-BOLT - 3/4 inch NC, 6 row wide rigid

2шт.

29

25548R1

WASHER

- flat, hardened, 6 row wide rigid

2шт.

30

129-108

NUT,3/4"-10, G5

6 row wide rigid 3/4"-10, G5

4шт.

31

90345C3

BRACKET

- rail pivot, 4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid

2шт.

32

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, 4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid

4шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid 5/8"

8шт.

34

425-1010

NUT,5/8"-11, G5

4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid 5/8"-11, G5

8шт.

35

90338C4

LARGE PLATE

PLATE - cylinder mounting, 4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid

2шт.

36

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 4 row wide, 4 row narrow, 6 row narrow, 8 row wide rigid

2шт.
