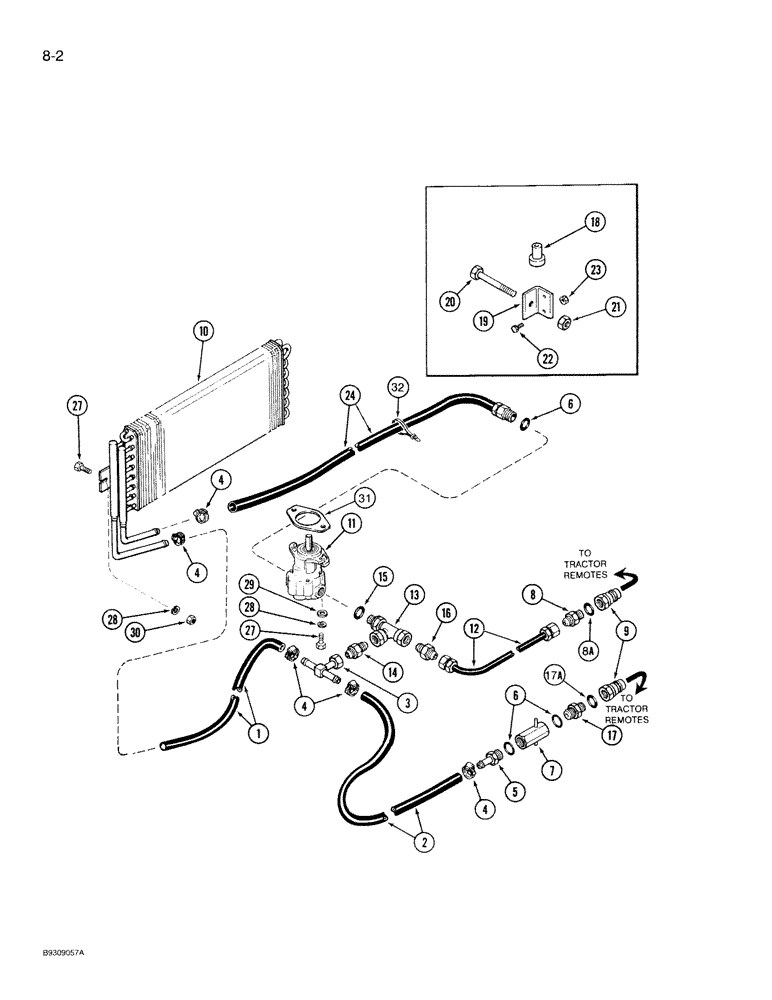

Запчасти Case IH 950 (8-002) - BLOWER DIRECT DRIVE HYDRAULIC SYSTEM, ALL RIGID PLANTERS, 8 ROW WIDE, VERTICAL FOLD (08) - HYDRAULICS

1

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE - 1/2 x 20 inch, return, all rigid and 8 row wide vertical fold (Cut from bulk hose 73199C1)

1шт.

2

137081C1

HYDRAULIC HOSE,12.70 mm ID x 5636.00 mm, SAE 100R6

Cut from 73199C1 Bulk Hose, Return (All Rigid Planters) 12.70 mm ID x 5636.00 mm, SAE 100R6

1шт.

2

133476A1

HYDRAULIC HOSE,12.70 mm ID x 8000.00 mm, SAE 100R6

Cut from 73199C1 Bulk Hose, Return (8 Row Wide Vertical Fold) 12.70 mm ID x 8000.00 mm, SAE 100R6

1шт.

3

1279334C1

TEE

- flared

1шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

5шт.

5

1272331C1

CONNECTOR, ELEC

CONNECTOR - 7/8-14 to 1/2 inch ID

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

7

1279338C1

VALVE

- check

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - 1/2 inch

1шт.

8a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1285718C2

QUICK MALE COUPLING

COUPLER - male

2шт.

10

1265677C1

OIL COOLER

COOLER - oil

1шт.

11

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-125)

1шт.

11

1272056C92R

REMAN-HYD MOTOR

950 - CASE IH TRAILING PLANTER, N.A. Only

1шт.

11

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

12

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

Supply, All Rigid Planters 12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

12

1978105C1

HYDRAULIC HOSE

HOSE - 1/2 x 225 inch, supply, 8 row wide vertical fold

1шт.

13

1279333C1

TEE

- swivel, 3/4-16 flared x 3/4-16 inch O-ring boss

1шт.

14

1282426C1

VALVE

- check

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

1шт.

17

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 5/8 to 1/2 inch

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1272871C1

SPACER

- flow control valve

1шт.

19

1283092C1

ANGLE

BRACKET - handle stop support

1шт.

20

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

2шт.

24

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

1985956C1

GASKET

- motor

1шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

1шт.

73199C1

HOSE

- hydraulic, 1/2 inch (12.7 mm) ID, 50 foot (600 mm) roll

1шт.
