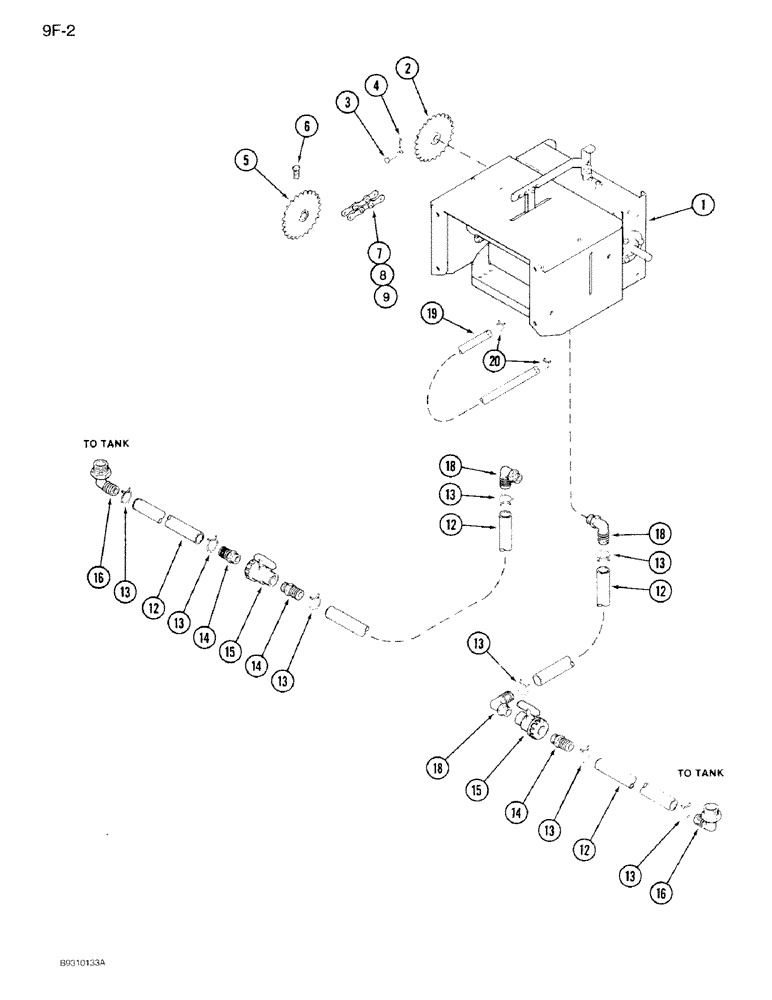

Запчасти Case IH 950 (9F-02) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM AND SECONDARY DRIVE (09) - CHASSIS/ATTACHMENTS

1

1250764C93

PUMP

ASSEMBLY - squeeze, parts list pages 9F-11 and 9F-13

1шт.

2

1250746C1

SPROCKET

- drive, 24 tooth

1шт.

2

1254149C1

SPROCKET

- drive, 21 tooth

1шт.

2

1254150C1

SPROCKET

- drive, 30 tooth

1шт.

3

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN - clevis, 1/4 x 1-7/8 inch

2шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

5

1254152C2

SPROCKET

- driver, 30 tooth

1шт.

6

21689R1

SCREW

- square head set, 1/2 NC x 3/4 inch

2шт.

7

149569C3

CHAIN (AG)

CHAIN - No. 1040, use 99 links from bulk chain 569088R91, see below, one 1277927C91 connecting link, item 8, and one 457114R91 offset link, item 9 (See note B)

1шт.

8

1277927C91

LINK

- connecting

1шт.

9

457114R91

CHAIN LINK

LINK - offset

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - transparent, 1 ID x 168 inch, cut from 134329C1, shown below

1шт.

13

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - hose, No. 20 Type E

1шт.

14

134270C1

FITTING

- straight

3шт.

15

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - ball

2шт.

16

1261310C1

ELBOW

- 90 degree, special

2шт.

18

134271C1

ELBOW

- 90 degree

3шт.

19

NSS

NOT SOLD SEPARAT

HOSE - transparent, 1/2 ID x 900 inch, cut from 134331C1, shown below

1шт.

20

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP - hose retaining

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 1040, 10 foot roll

1шт.

134329C1

HOSE

- transparent, 1 ID x 50 foot

1шт.

134331C1

HOSE

- transparent, 1/2 ID x 1000 foot

1шт.
