(9F-18) - LIQUID FERTILIZER CENTRAL FILL SYSTEM ATTACHMENT, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD

Запчасти Case IH 950 (9F-18) - LIQUID FERTILIZER CENTRAL FILL SYSTEM ATTACHMENT, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

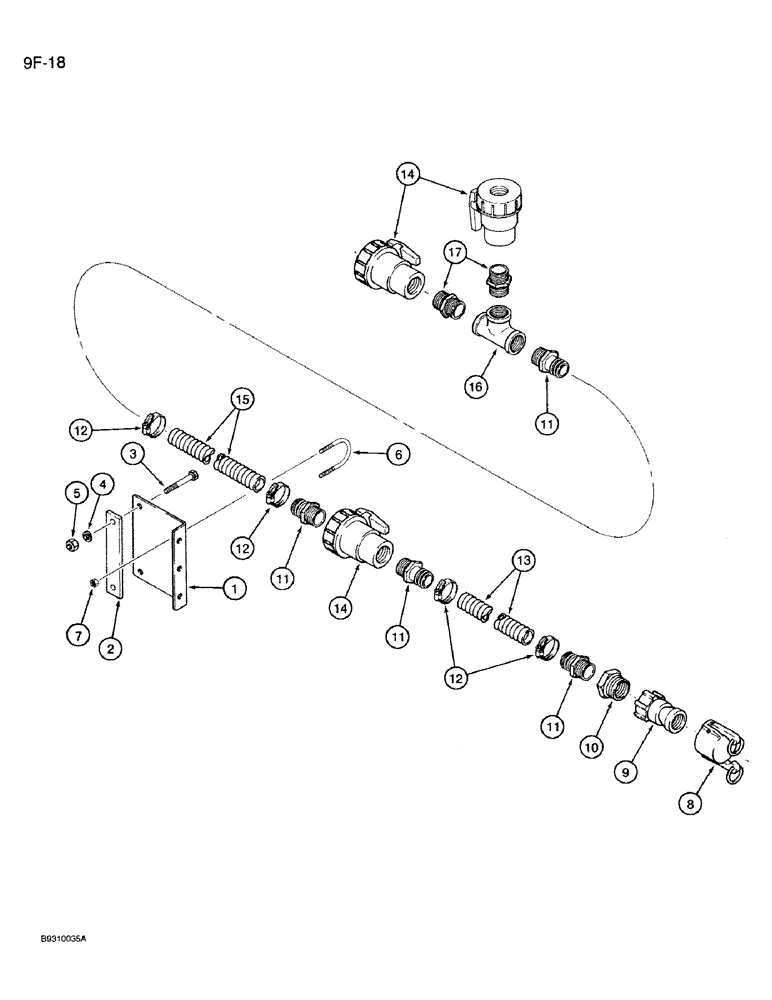

Схема запчастей Case IH 950 - (9F-18) - LIQUID FERTILIZER CENTRAL FILL SYSTEM ATTACHMENT, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS
2
11
16
3
4
11
6
9
5
7
14
15
12
12
1
11
12
10
8
13
17
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1995502C1

BRACKET

- mounting

1шт.

2

1261430C1

BAR

PLATE - backup, includes decal

1шт.

3

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

1264087C1

U-BOLT

UR .313 2.188W 3.13D

1шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

1264066C1

CAP

COVER - dust

1шт.

9

1264069C1

FITTING

ADAPTER - 1-1/2 x 1-1/2 inch

1шт.

10

1264071C1

FITTING

REDUCER - hex, 1-1/2 to 1-1/4 inch

1шт.

11

1264072C1

FITTING

- hose, barbed

4шт.

12

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

4шт.

13

NSS

NOT SOLD SEPARAT

HOSE - 1-1/2 ID x 6 inch, cut from 1264065C2, shown below

1шт.

14

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

3шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 1-1/2 ID x 30-1/8 inch, cut from 1264065C2, shown below

1шт.

16

1264067C1

FITTING

TEE - 1-1/4 inch female

1шт.

17

1264070C1

FITTING

CONNECTOR - straight

2шт.

1264065C2

HOSE

- spiral, 1-1/2 ID x 100 foot

1шт.
