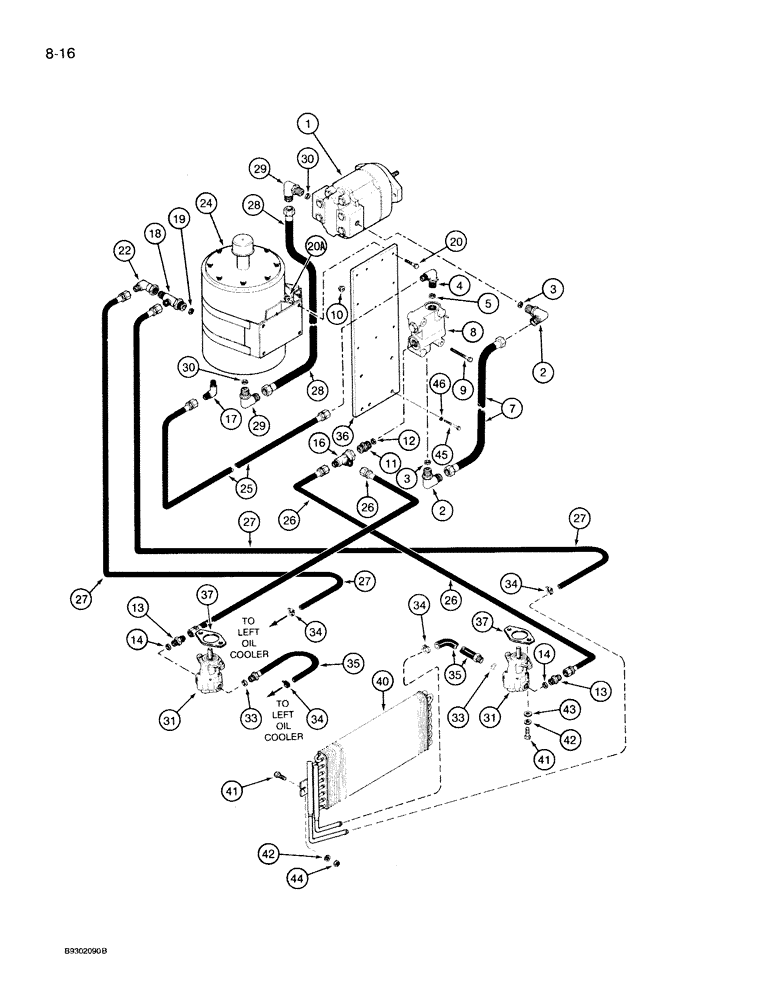

Запчасти Case IH 950 (8-016) - BLOWER PUMP HYDRAULIC SYSTEM, 12 AND 16 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, see pages 8-119 and 8-121 for correct pump

1шт.

See page 8-9, items 8 through 31, for pump mounting to tractor and coupler to power takeoff parts.

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure, Flow control valve 0.75" ID x 48.00"

1шт.

8

127743C91

VALVE

ASSEMBLY - flow control, parts list page 8-111

1шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

17

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

- 1/2 inch, 90 degree

1шт.

18

159484C91

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special, 1-1/16 to 7/8 to 7/8 inch male

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

20a

231-5146

FLANGE NUT,3/8"-16

4шт.

22

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 5/8 inch, 90 degree

1шт.

24

156395C91

RESERVOIR

ASSEMBLY - 3 gallon, hydraulic oil (Parts list page 8-127)

1шт.

25

90878C1

HYDRAULIC HOSE

HOSE - 39 inch long, return bypass

1шт.

26

113710A1

HOSE

- 295 inch long, pressure, tee to blower motor, 16 row

2шт.

26

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, Pressure, Tee to Blower Motor, 12 Row

2шт.

27

113711A1

HOSE ASSY.

HOSE - 306 long, return, cooler to reservoir, 16 row

2шт.

27

124671A1

HOSE

- 276 long, return, cooler to reservoir, 12 row

2шт.

28

118673A1

HOSE,31.75mm ID x 1675mm L, SAE 100R4

- 66 inch long, suction

1шт.

29

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

31

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-125)

2шт.

31

1272056C92R

REMAN-HYD MOTOR

950 - CASE IH TRAILING PLANTER, N.A. Only

2шт.

31

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

34

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose retaining

4шт.

35

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

36

145103C3

PLATE

BRACKET - reservoir mounting

1шт.

37

1985956C1

GASKET

- blower motor

2шт.

40

1265677C1

OIL COOLER

COOLER - oil

2шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

42

492-11038

LOCK WASHER,3/8"

4шт.

43

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

4шт.

44

425-106

NUT,3/8"-16, Cl 5

4шт.

45

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
