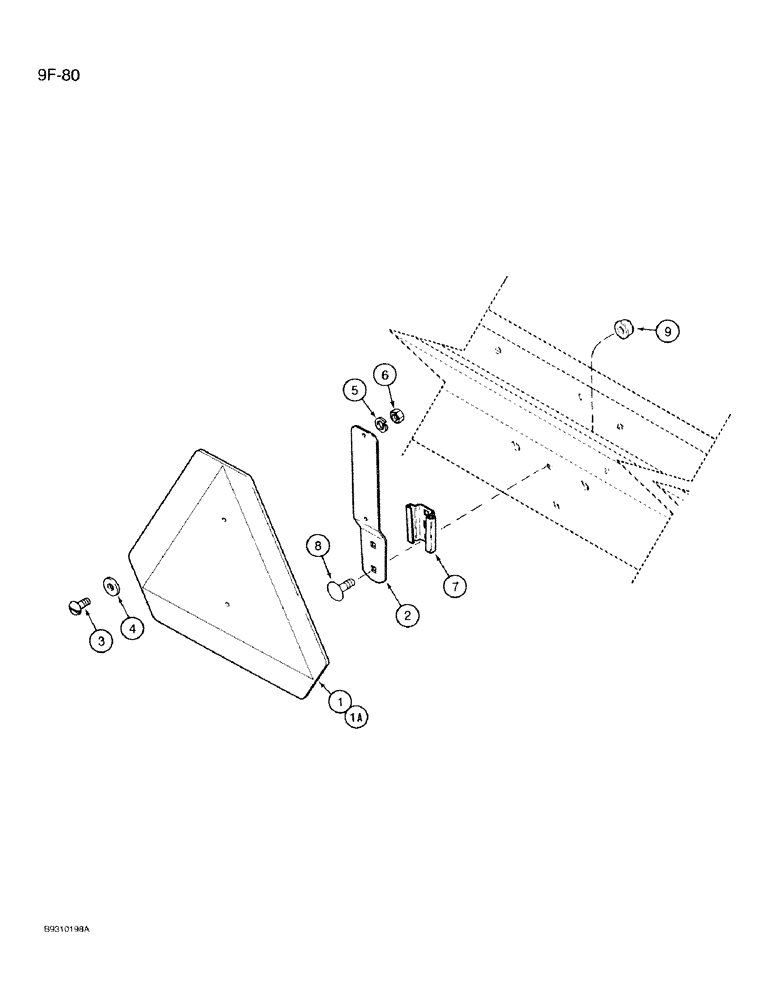

Запчасти Case IH 950 (9F-80) - SMV EMBLEM, ALL RIGID, VERTICAL FOLD AND FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

1a

321-4311

DECAL

- slow moving vehicle

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

3

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

- round head slotted, No. 10-24 x 1/2 inch

2шт.

4

195-513

WASHER,#10

- flat, 13/64 x 9/16 x 1/16 inch

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

- mounting (Not used on front fold Planters)

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- round head square neck, 5/16 NC x 3/4 inch

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange lock, 5/16 inch NC

2шт.
