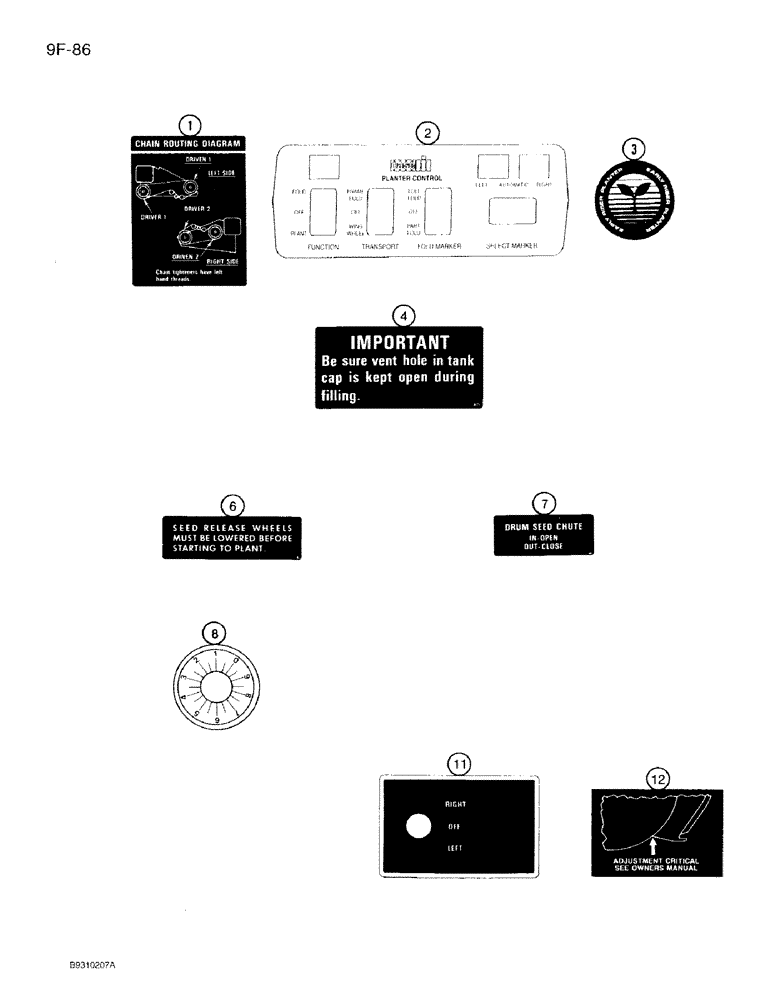

Запчасти Case IH 950 (9F-86) - DECALS, ALL RIGID, VERTICAL FOLD AND FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1254231C1

PRODUCT GRAPHIC

DECAL - chain routing, rigid and vertical fold

1шт.

1a

118564A1

DECAL

- chain routing, front fold, not shown (See item 6, page 9F-91)

1шт.

2

116823A1

DECAL

- planter control, front fold

1шт.

2a

116909A1

DECAL

- planter control instructions, front fold, not shown (See item 5, page 4-13)

1шт.

3

95769C1

DECAL

- Early Riser Planter, knob insert

1шт.

4

1254278C1

PRODUCT GRAPHIC,Important Be sure vent hole in tank cap is kept open during fill

DECAL - vent hole

1шт.

6

549073R1

DECAL

- instructions, English

2шт.

6

854098C1

DECAL

- instructions, French (Not shown)

2шт.

7

141213C1

DECAL

- seed flow, English

1шт.

7

80095C1

DECAL

- seed flow, French (Not shown)

1шт.

8

134294C1

DIAL

INDICATOR - dial handle disc

2шт.

11

147218C1

DECAL,Control Right Off Left

- marker control, mechanical (Rigid and Vertical Fold)

1шт.

12

1986496C1

DECAL

- critical adjustment, Min-Til fertilizer opener

1шт.
