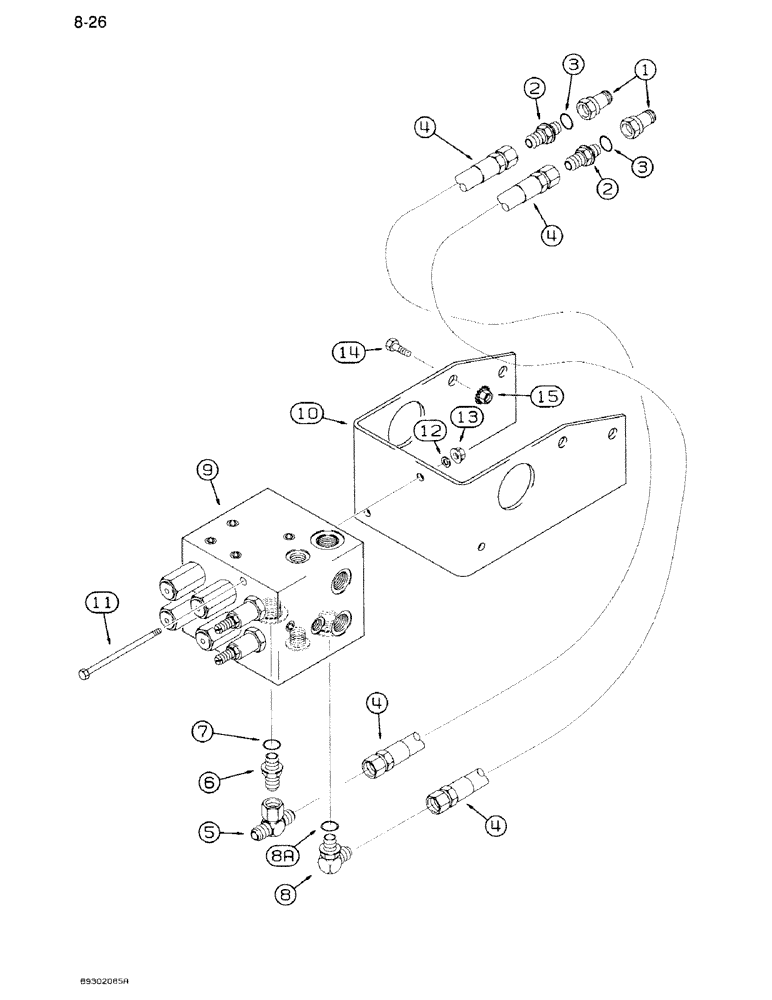

Запчасти Case IH 950 (8-026) - TRACTOR TO PLANTER HYD SYS, HYD VALVE BLOCK MOUNTING, 8 ROW WIDE & 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

1

1285718C2

QUICK MALE COUPLING

- self-sealing male, 3/4-16 thread (ISO Standard)

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

1978105C1

HYDRAULIC HOSE

HOSE - 5715 mm long, pressure and return

2шт.

5

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

1шт.

6

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring (Port "R1" of control valve)

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring (Port "L1" of control valve)

1шт.

8a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

138295A1

VALVE

ASSEMBLY - planter control, parts list page 8-133

1шт.

10

137954A1

BRACKET

- valve mounting

1шт.

11

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
