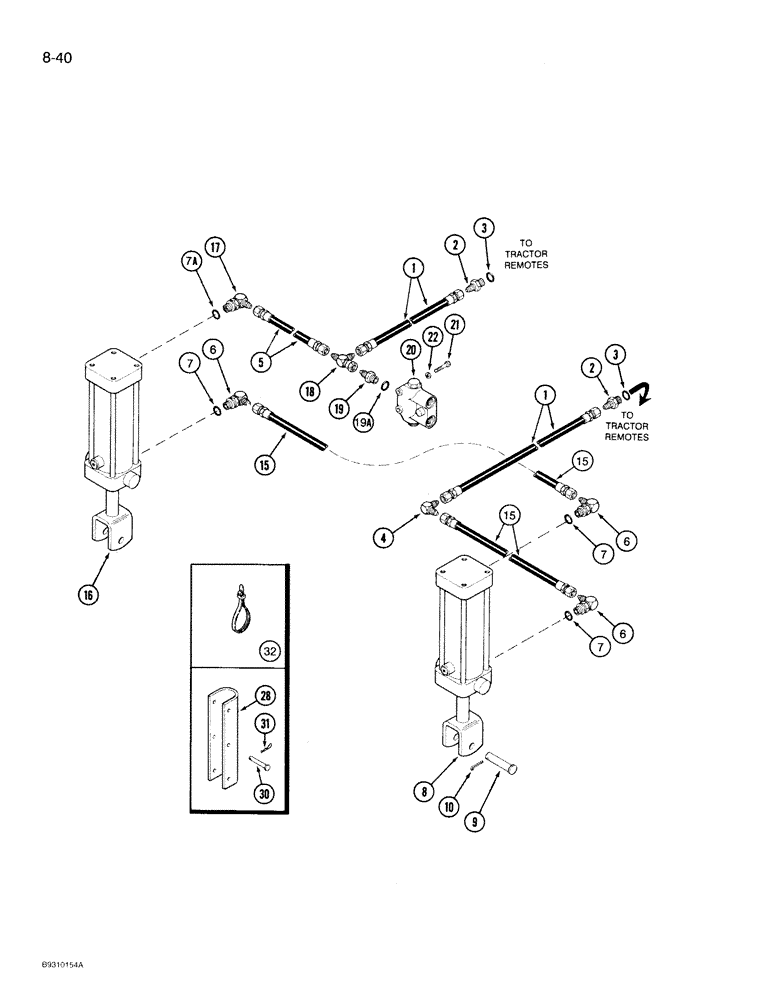

Запчасти Case IH 950 (8-040) - CARRYING WHEEL HYDRAULIC SYSTEM, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID (08) - HYDRAULICS

1

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - 3/8 ID x 185 inch

2шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare

1шт.

5

1284301C1

HYDRAULIC HOSE

HOSE - 3/8 ID x 45 inch (4 row wide)

2шт.

5

1254574C2

HYDRAULIC HOSE

HOSE - 3/8 ID x 60 inch (4 and 6 row narrow)

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - slave, wheel, 3 x 8 inch (See Page 8-79)

1шт.

9

21675R1

PIN

- clevis, 3/4 x 3-1/4 inch

2шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

15

1284368C1

HYDRAULIC HOSE

HOSE - 3/8 ID x 100 inch (4 row wide)

1шт.

15

1284369C1

HYDRAULIC HOSE

HOSE - 3/8 ID x 130 inch (4 and 6 row narrow)

1шт.

16

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - master, wheel, 3-1/4 x 8 inch (See Page 8-81)

1шт.

17

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch fl branch x flare x adj straight thread

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (See Note)

1шт.

19

93206C1

FITTING

ADAPTER - special, restrictor (See Note)

1шт.

19a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - row marker (See Page 8-107)

1шт.

21

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

1261241C91

STOP

BRACKET ASSEMBLY - cylinder stop, with decal

2шт.

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- warning, cylinder stop (See Page 9F-85)

1шт.

30

22752R1

SPLIT PIN/SAFETY PIN

PIN - headed, 3/8 x 2-1/4 inch

2шт.

31

544063R1

HAIR PIN COTTER

PIN - cotter, hair, 3/32 inch

2шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
