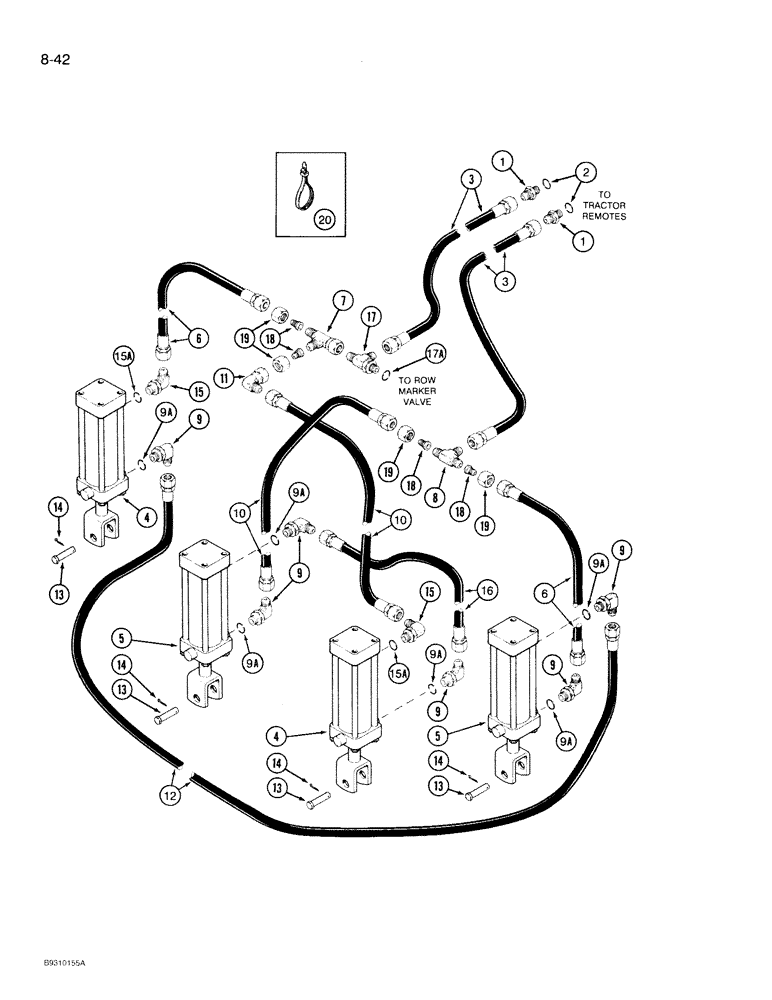

Запчасти Case IH 950 (8-042) - CARRYING WHEEL HYDRAULIC SYSTEM, 6 ROW WIDE, RIGID, 8 ROW NARROW, RIGID (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, 12.70 mm ID X 4955.00 mm

2шт.

4

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - carrying, master, 3-1/4 ID x 8 inch stroke (See Page 8-81)

2шт.

5

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - carrying, slave, 3 ID x 8 inch stroke (See Page 8-79)

2шт.

6

1284368C1

HYDRAULIC HOSE

HOSE - 3/8 ID x 100 inch

2шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

8

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

1шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

6шт.

9a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1284301C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 ID x 45 inch (8 row narrow)

2шт.

10

1285380C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 ID x 50 inch (6 row wide)

2шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

1шт.

12

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

8 row narrow 9.52 mm ID x 4955.00 mm

1шт.

12

129782C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 165 inch (6 row wide)

1шт.

13

21675R1

PIN

- headed, 3/4 x 3-1/4 inch

4шт.

14

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

15

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

1284315C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 ID x 65 inch (8 row narrow)

1шт.

16

1284368C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 ID x 100 inch (6 row wide)

1шт.

17

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

4шт.

19

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4 inch NF

4шт.

20

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
