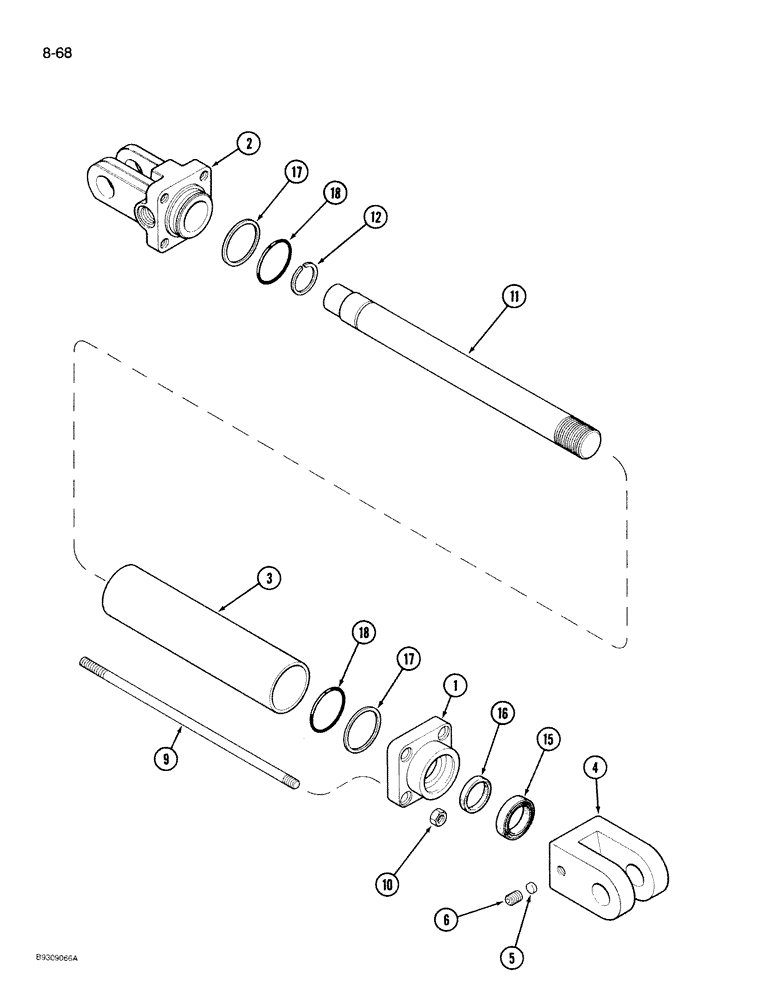

Запчасти Case IH 950 (8-068) - HYDRAULIC CYLINDER, 1272484C92, ROW MARKER, 4 AND 6 ROW NARROW-RIGID, 4 ROW WIDE, RIGID (08) - HYDRAULICS

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 1-1/4 rod diameter x 8 inch stroke, 3/4 inch port

1шт.

1

1272768C1

HEAD

- closed end, cylinder

1шт.

2

1272769C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

4

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

5

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis

1шт.

6

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - SET, hex socket headless, 3/8 NC x 3/8 inch cup pt

1шт.

9

145248C1

ROD,3/8" - 16 x 318mm

BOLT - tie, cylinder

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

92887C1

PISTON ROD

ROD - cylinder, 1-1/4 inch diameter

1шт.

12

92888C1

RING, LOCKING

RING - retaining, external

1шт.

79974C2

SEAL KIT

KIT - seal (See Note)

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - head

2шт.
