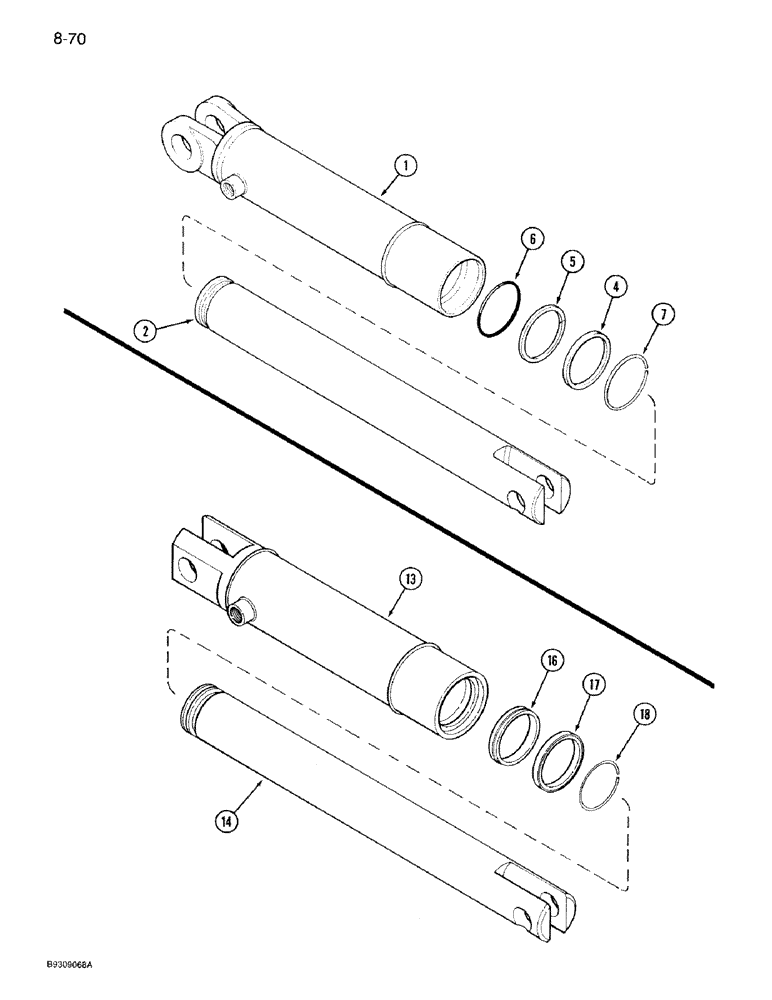

Запчасти Case IH 950 (8-070) - HYD CYLS, 145622C91 & 841038C91, ROW MARKER, 6 ROW WIDE &8 ROW NARROW,RIGID, ALL VERTICAL&FRONT FOLD (08) - HYDRAULICS
17
18
4
16
7
1
6
5
14
13
2
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
145622C91
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke
CYLINDER ASSEMBLY - marker, 2 rod x 8 inch stroke (Alternative part is 841038C91)
2шт.
6
464048R1
O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro
- 2 ID x 3/16 inch
1шт.
841038C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - marker, 2 rod x 8 inch stroke (Cessna)(Alternative part)
2шт.
