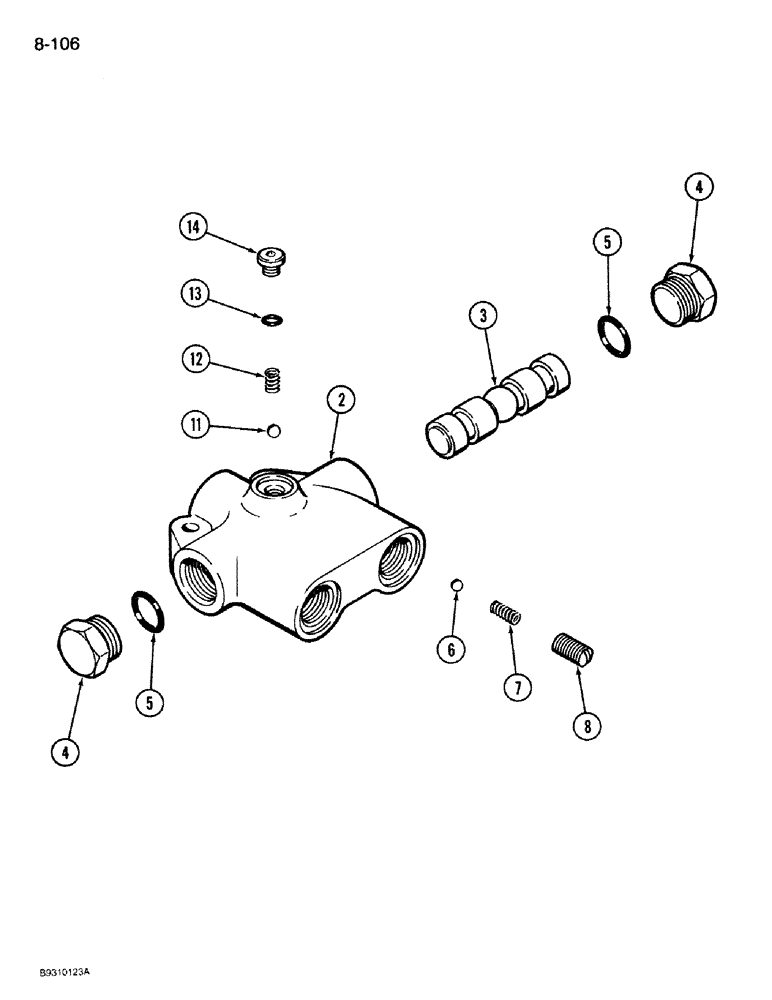

Запчасти Case IH 950 (8-106) - ROW MARKER SEQUENCING VALVE, ALL RIGID PLANTERS, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - row marker

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

211-204

BALL

- 3/16 inch diameter

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - ball

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

11

211-206

BALL,1/4" Dia

- 1/4 inch diameter

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - ball

1шт.

13

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

- 15/64 ID x 1/16 inch

1шт.

14

86632547

PLUG,Hex, 5/16"-24 ORB

Spring retaining Hex Soc, 5/16"-24 ORB

1шт.
