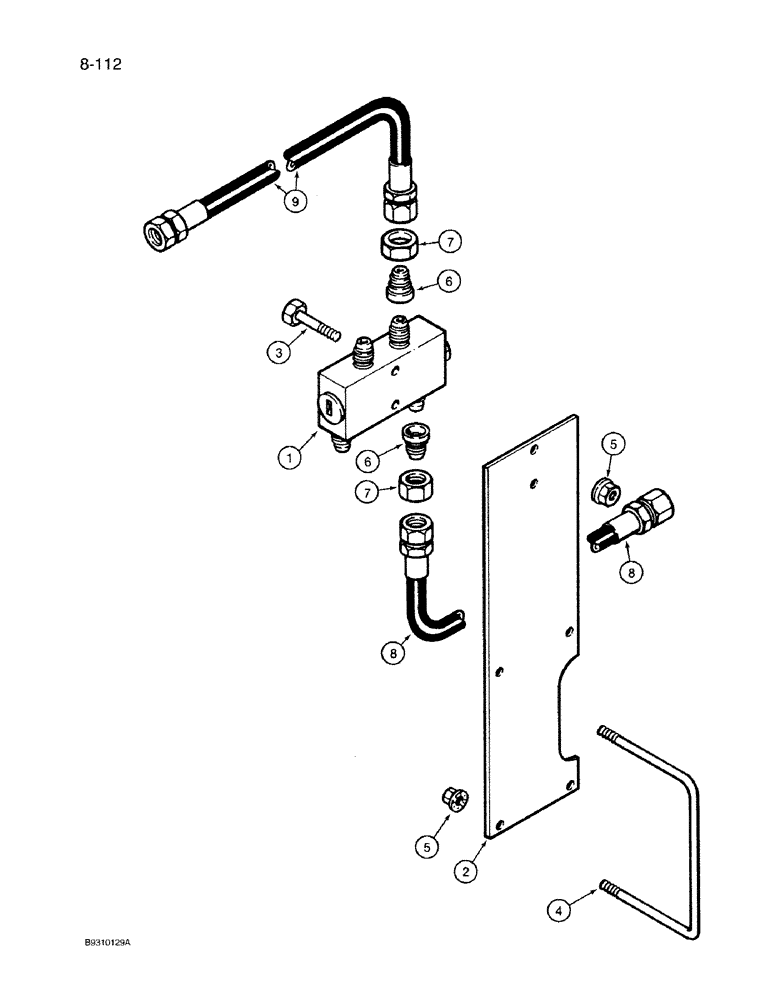

Запчасти Case IH 950 (8-112) - ALTERNATING CHECK VALVE ATTACHMENT, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID (08) - HYDRAULICS

1

142864C95

VALVE

ASSEMBLY - check, alternating (See Page 8-115)

1шт.

2

91333C1

SUPPORT

- check valve

1шт.

3

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

4

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT - 3/8 inch NC

2шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

6

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - 9/16-18 male flared x 7/8-14 inch nut

4шт.

7

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - tube, 7/8-14 inch

4шт.

8

139654C2

HYDRAULIC HOSE

HOSE - 3/8 x 125 inch

2шт.

9

1254574C2

HYDRAULIC HOSE

HOSE - 3/8 x 60 inch

2шт.
