(9A-20) - WING FRAMES AND HINGE, 24 ROW NARROW, FRONT FOLD

Запчасти Case IH 950 (9A-20) - WING FRAMES AND HINGE, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

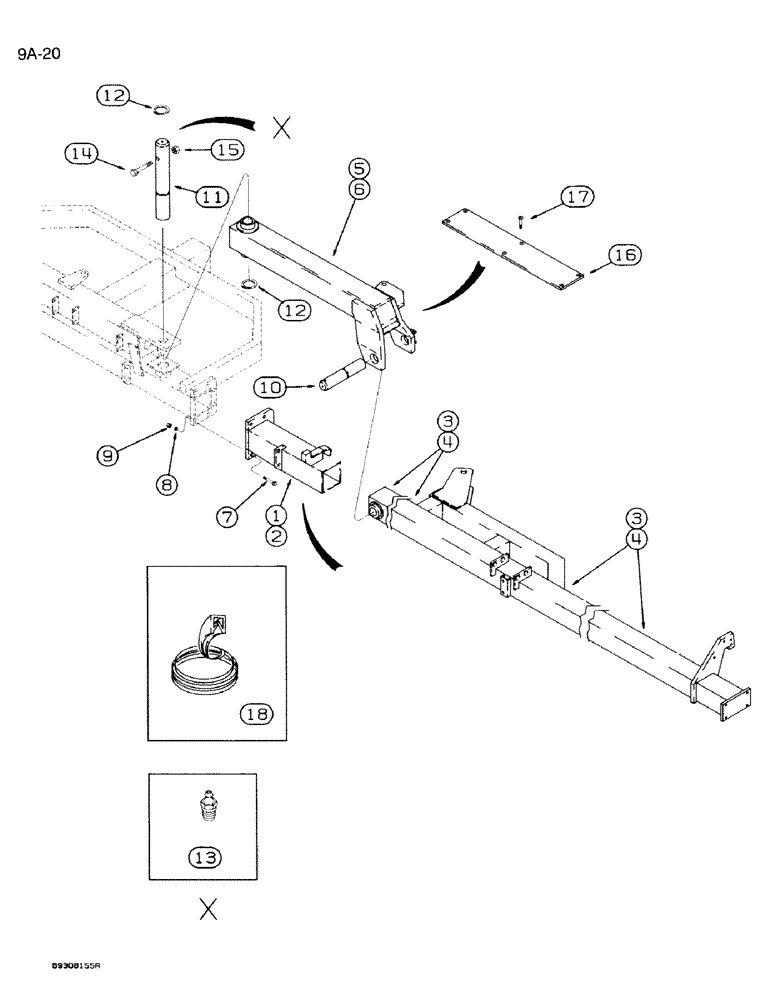

Схема запчастей Case IH 950 - (9A-20) - WING FRAMES AND HINGE, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS
7
12
16
12
3
11
2
18
4
9
4
13
17
5
15
1
6
14
8
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

116063A1

FRAME ASSY

FRAME - extension, rear center, right-hand

1шт.

2

116064A1

FRAME ASSY

FRAME - extension, rear center, left-hand

1шт.

3

123693A1

FRAME ASSY

WING - main frame, right-hand

1шт.

4

123702A1

FRAME ASSY

WING - main frame, left-hand

1шт.

5

123694A1

HINGE

- main frame, right-hand

1шт.

6

123695A1

HINGE

- main frame, left-hand

1шт.

7

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

12шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

9

425-1012

NUT,3/4"-10, G5

12шт.

10

127846A1

PIN

- 3 x 15-11/16 inch, horizontal, pivot

2шт.

11

127845A1

PIN

- 3 x 20-3/4 inch, vertical, wing hinge

2шт.

12

127849A1

WASHER

- thrust

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

14

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

15

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, prevailing torque, 1/2 inch NC

2шт.

16

116071A1

PLATE

PLATE - slide, plastic

2шт.

17

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket flat head, 3/8 NC x 1 inch

1шт.

18

118861A1

LINING

TRIM - 1/4 inch thick edge

11шт.
