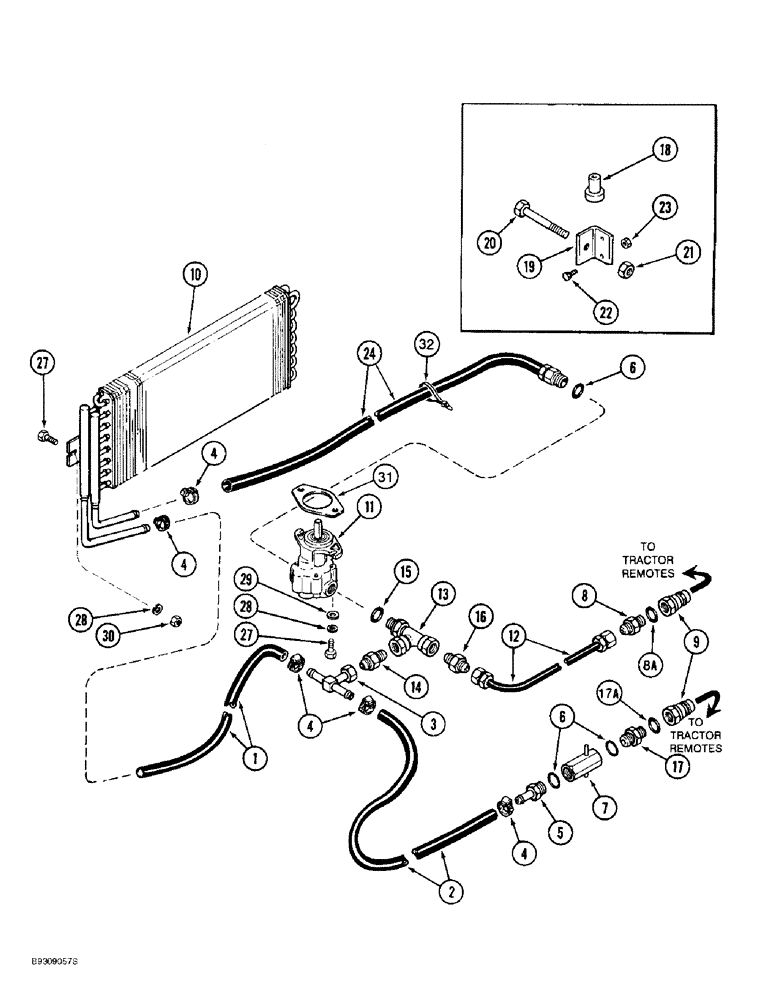

Запчасти Case IH 955 (8-02) - BLOWER DIRECT DRIVE HYDRAULIC SYSTEM, 6 AND 8 ROW (08) - HYDRAULICS

1

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE - 508 mm (20 inch) long, cut from 73199C1 bulk hose, see below

1шт.

2

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

- Cut from 73199C1 bulk hose, See below 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

3

1279334C1

TEE

- special

1шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

5шт.

5

1272331C1

CONNECTOR, ELEC

CONNECTOR - special

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

7

1279338C1

VALVE

- check

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

8a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

10

1265677C1

OIL COOLER

COOLER - oil

1шт.

11

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-55)

1шт.

11

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

1шт.

11

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

13

1279333C1

TEE

- swivel, 3/4-16 inch flare x O-ring boss

1шт.

14

1282426C1

VALVE

- check

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

1шт.

17

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1272871C1

SPACER

- flow control valve

1шт.

19

1283092C1

ANGLE

BRACKET - handle stop support

1шт.

20

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

28

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

1985956C1

GASKET

- blower motor

1шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

73199C1

HOSE

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.
