(9B-02) - PRIMARY SEED DRIVE, RIGID AND VERTICAL FOLD PLANTERS

Запчасти Case IH 955 (9B-02) - PRIMARY SEED DRIVE, RIGID AND VERTICAL FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

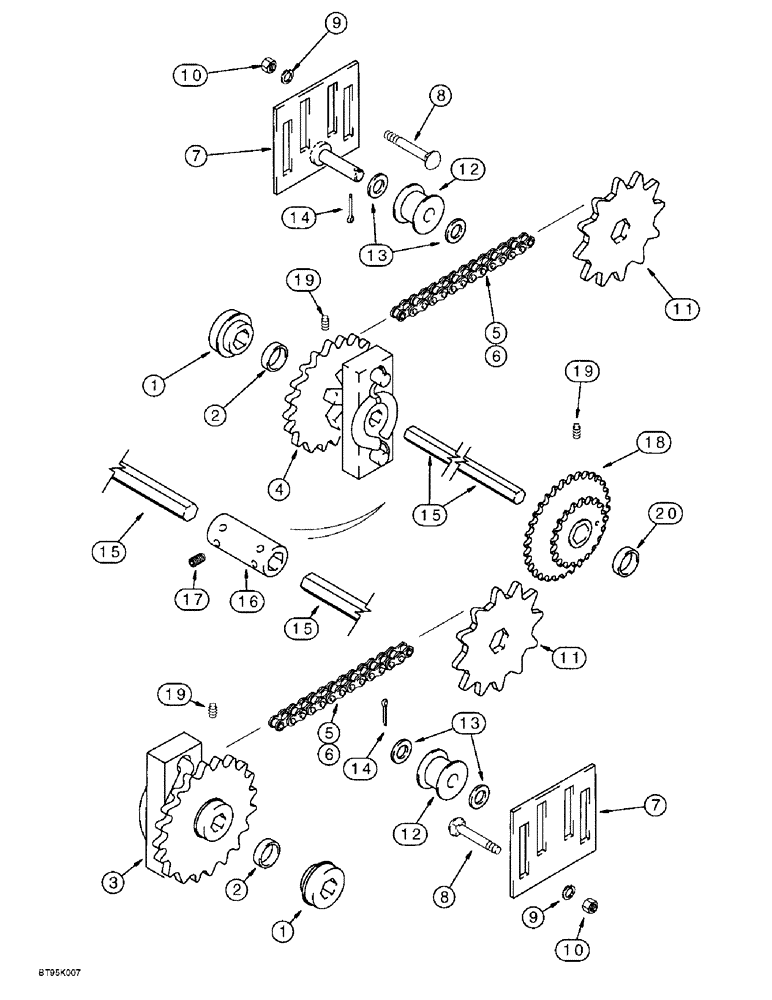

Схема запчастей Case IH 955 - (9B-02) - PRIMARY SEED DRIVE, RIGID AND VERTICAL FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS
11
12
3
15
9
13
19
6
5
2
15
10
16
19
18
6
19
1
12
14
1
7
13
15
10
4
11
9
14
8
7
20
8
17
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134181C92

BALL BEARING,2.125" OD x 0.046"

- ball, primary drive

2шт.

2

1277812C2

SPACER

- sprocket

2шт.

3

1277925C91

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, 23 teeth, parts list page 9B-7

1шт.

4

1277926C91

PINION

SPROCKET ASSEMBLY - right-hand drive ratchet, 23 teeth, parts list page 9B-7

1шт.

5

1277739C91

CHAIN (AG)

CHAIN - primary wheel drive, No. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link, see below

2шт.

6

1277928C91

LINK

- chain connecting, primary wheel drive chain

1-2шт.

7

193948A1

IDLER

PLATE - wheel drive idler

2шт.

8

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1277736C1

SPROCKET

- drive wheel, 12 teeth

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

- idler, drive chain

2шт.

13

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

1254282C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3000 mm (118-1/8 inch) long, primary drive, (1) used with 6 row narrow rigid and (2) used with 8 row wide rigid

1-2шт.

15

134153C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3626 mm (142-3/4 inch) long, primary drive, 6 row wide rigid and 8 row wide vertical fold

1шт.

15

134152C1

BAR

SHAFT - drive, hex, 22 (7/8) x 4332 mm (170-9/16 inch) long, primary drive, used with 8 row narrow rigid, 12 row narrow vertical fold and with 12 row narrow rigid

1шт.

16

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, 8 row wide rigid

1шт.

17

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, 8 row wide rigid

4шт.

18

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth, speed change

1шт.

19

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

6шт.

20

144812C2

SPACER

- 27 x 33 x 17 mm

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.
