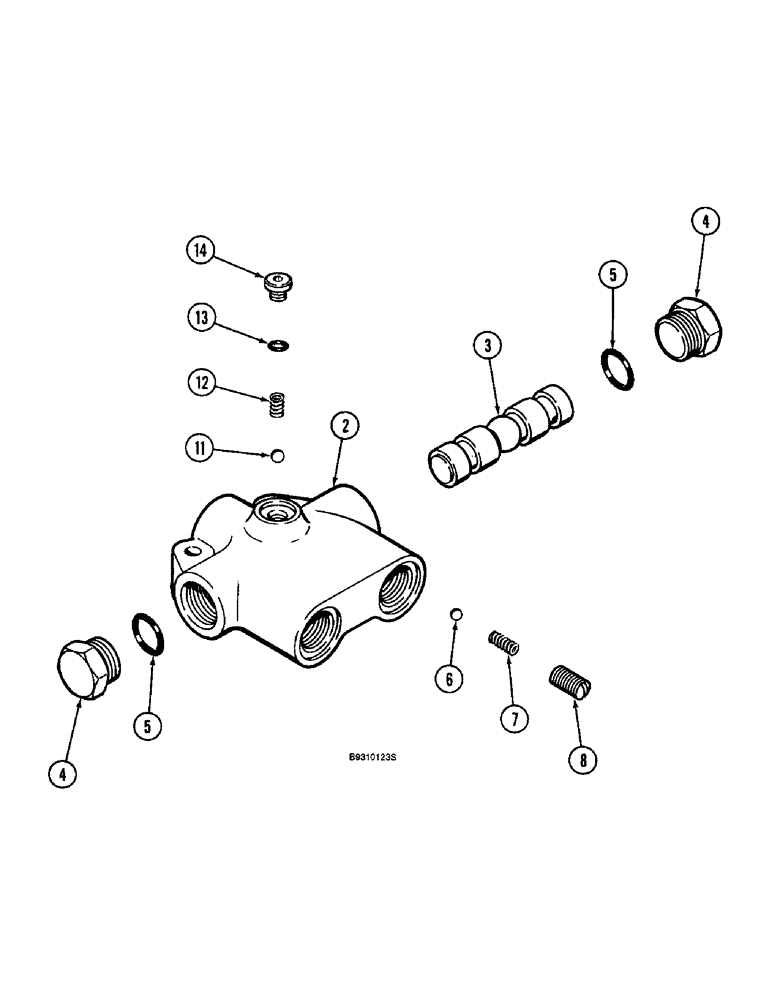

Запчасти Case IH 955 (8-134) - ROW MARKER SEQUENCING VALVE, ALL RIGID PLANTERS, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - sequencing, row marker

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - ball

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

11

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - ball

1шт.

13

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

14

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.
