(8-136) - ROW MARKER VALVE, ALL RIGID PLANTERS, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD

Запчасти Case IH 955 (8-136) - ROW MARKER VALVE, ALL RIGID PLANTERS, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

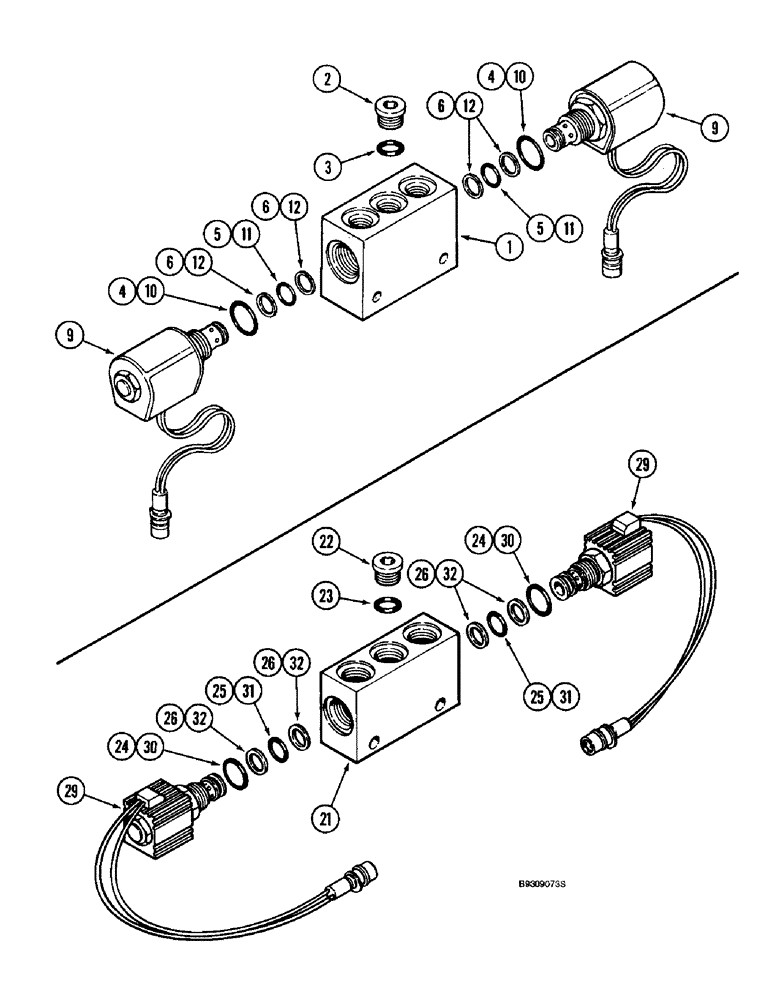

Схема запчастей Case IH 955 - (8-136) - ROW MARKER VALVE, ALL RIGID PLANTERS, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS
6
26
6
25
6
4
22
10
23
26
11
32
9
24
32
3
24
10
31
12
26
11
32
5
30
25
12
1
2
12
29
21
4
30
29
31
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - control, row marker (Modular Controls)

1шт.

1

145317C2

VALVE BODY

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - 9/16-18 inch O-ring boss

1шт.

145316C1

REPAIR KIT

KIT - seal, repair, valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

9

149989C91

VALVE

- solenoid

2шт.

1272308C1

SEAL KIT

KIT - seal, repair, solenoid valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.
