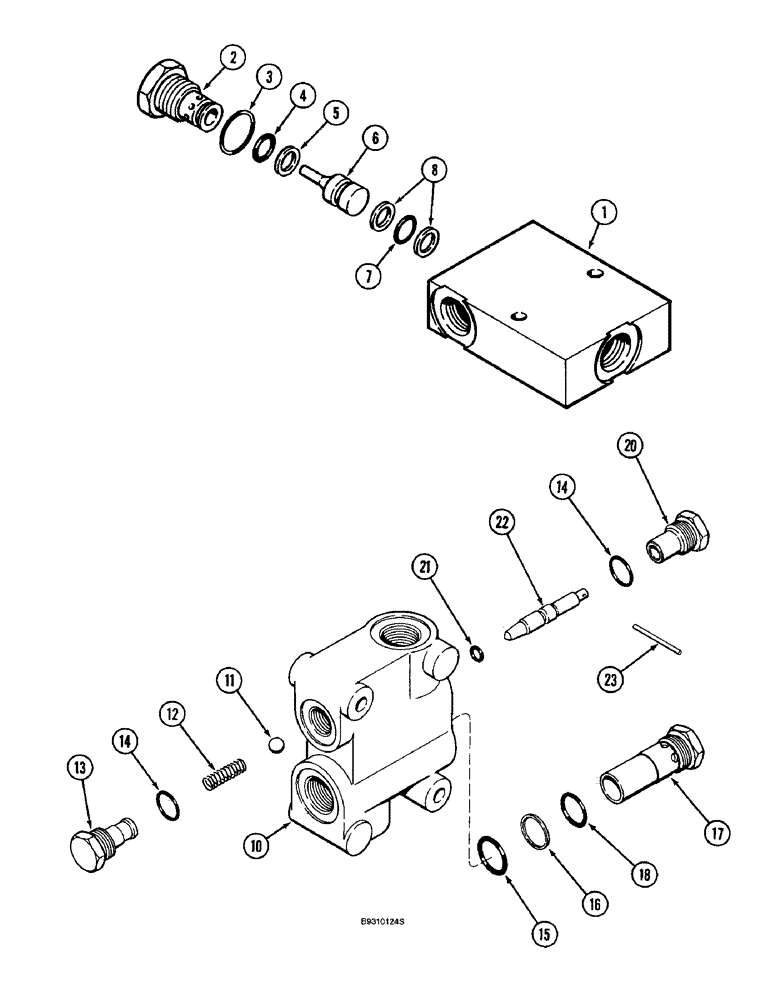

Запчасти Case IH 955 (8-138) - CHECK VALVE (08) - HYDRAULICS

1272359C91

VALVE

ASSEMBLY - check, 8 Row Wide & 12 Row Narrow - Vertical Fold

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1272359C91)

1шт.

2

149938C1

CHECK VALVE,7/8" - 14

VALVE - check

1шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

1272343C2

PISTON

- valve

1шт.

149941C1

PACKAGE

KIT - seal, repair, piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

127743C91

VALVE

ASSEMBLY - flow control, 12 Row Narrow - Vertical Fold, 12 Row Narrow, 12 Row Wide & !6 Row Narrow - Front Fold

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve (Order 127743C91), flow control valve

1шт.

11

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24, Flow control valve

1шт.

12

262253C1

SPRING

- ball, flow control valve

1шт.

13

59060C1

PLUG

- check ball, flow control valve

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Flow control valve

2шт.

15

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Flow control valve -119, 70 Duro, .924" ID x .103" Thk

1шт.

16

378985R2

BACK-UP RING

RING - backup, flow control valve

1шт.

17

382928R91

VALVE

ASSEMBLY - cushion relief, flow control valve

1шт.

18

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Flow control valve -118, 70 Duro, .862" ID x .103" Thk

1шт.

20

127744C1

RETAINER,7/8" - 14 x 30mm, UNC

RETAINER - adjusting screw, flow control valve

1шт.

21

145637C1

O-RING,0.237" ID x 0.103", 70 Duro

- 15/64 ID x 7/64 inch wide, flow control valve

1шт.

22

127745C1

ADJUSTMENT SCREW,3/8" - 24 x 59.18mm

- adjusting, flow control valve

1шт.

23

138-323

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, , flow control valve 1/8" x 1 3/4", Slotted

1шт.
