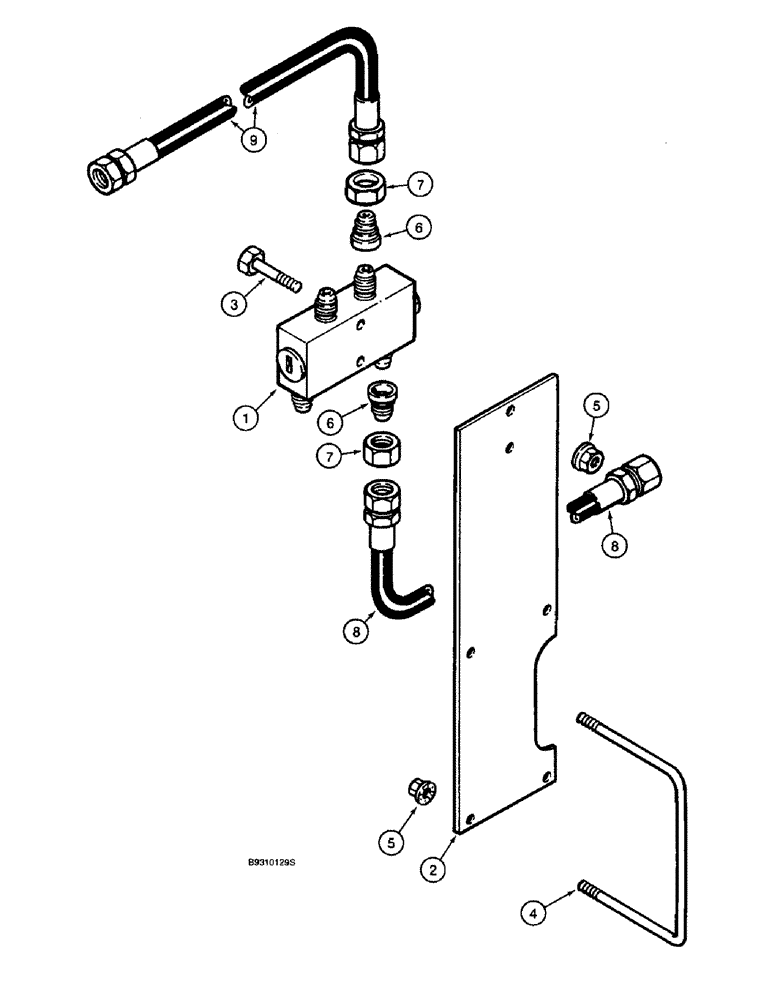

Запчасти Case IH 955 (8-140) - ALTERNATING LOAD CHECK VALVE ATTACHMENT, 4 & 6 ROW NARROW RIGID 4 ROW WIDE RIGID (08) - HYDRAULICS

1

142864C95

VALVE

ASSEMBLY - load check, alternating (See Page 8-143)

1шт.

2

91333C1

SUPPORT

- check valve

1шт.

3

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

4

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT - 3/8 inch NC, special

2шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

6

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - reducing, 5/8 tube OD x 9/16-18 inch flare

4шт.

7

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, 7/8 inch NF

4шт.

8

139654C2

HYDRAULIC HOSE

HOSE - 3175 mm (125 inch) long, lower

2шт.

9

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long, upper

2шт.
