(8-154[C]) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 12 ROW WIDE - FRONT FOLD (THROUGH 8/97)

Запчасти Case IH 955 (8-154[C]) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 12 ROW WIDE - FRONT FOLD (THROUGH 8/97) (08) - HYDRAULICS

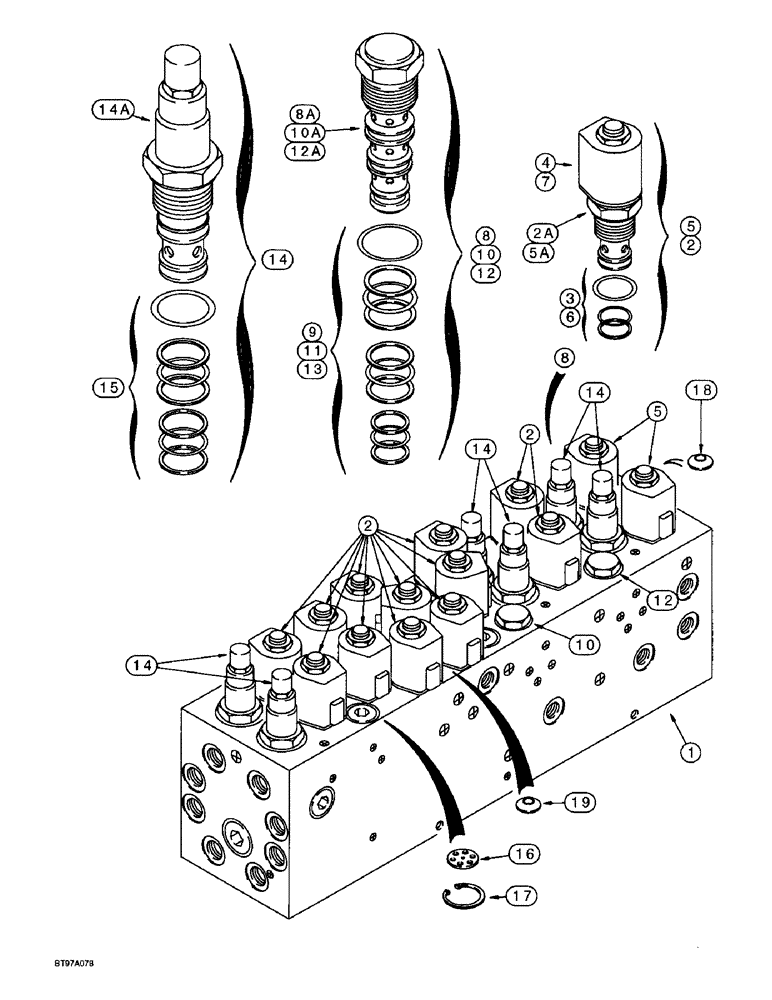

Схема запчастей Case IH 955 - (8-154[C]) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 12 ROW WIDE - FRONT FOLD (THROUGH 8/97) (08) - HYDRAULICS
2
12a
14
14a
8a
10
16
7
8
5a
6
12
5
15
2
4
5
10
14
11
18
14
10a
8
1
9
2
13
12
3
2a
17
14
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

117311A3

VALVE

ASSEMBLY - control, 12 row narrow, 12 row wide and 16 row narrow, Includes: Ref. 1 - 19, Serial Range: -DBC0001068

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, Serial Range: -DBC0001068

1шт.

2

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type, Includes: Ref. 2A - 4, Serial Range: -DBC0001068

12шт.

2a

NSS

NOT SOLD SEPARAT

VALVE - 2-way, Serial Range: -DBC0001068

1шт.

3

149942C1

SEAL KIT

KIT - seal replacement, poppet solenoid valve, Serial Range: -DBC0001068

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

4

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed, Serial Range: -DBC0001068

1шт.

5

126049A1

VALVE

ASSEMBLY - solenoid, spool type, Includes: Ref. 5A - 7, Serial Range: -DBC0001068

2шт.

5a

NSS

NOT SOLD SEPARAT

VALVE - 2 way, Serial Range: -DBC0001068

1шт.

6

126054A1

SEAL PACKAGE

KIT - seal, spool solenoid valve, Serial Range: -DBC0001068

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

7

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed, Serial Range: -DBC0001068

1шт.

8

129056A2

VALVE

ASSEMBLY - flow divider, 50/50 split, 27 GPM, 12 row, Includes: Ref. 8A & 9, Serial Range: -DBC0001068

1шт.

8

126050A2

VALVE

ASSEMBLY - flow divider, 33/66 split, 27 GPM, 16 row, Includes: Ref. 8A & 9, Serial Range: -DBC0001068

1шт.

8a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001068

1шт.

9

1341812C1

O-RING KIT

KIT - seal replacement, flow divider valve, Serial Range: -DBC0001068

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

10

126051A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 12 GPM, Includes: Ref. 10A & 11, Serial Range: -DBC0001068

1шт.

10a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001068

1шт.

11

126056A1

SEAL KIT

- seal, flow divider valve, Serial Range: -DBC0001068

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

12

126052A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 8 GPM, Includes: Ref. 12A & 13, Serial Range: -DBC0001068

1шт.

12a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001068

1шт.

13

126056A1

SEAL KIT

- seal, flow divider valve, Serial Range: -DBC0001068

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

14

126053A2

VALVE

ASSEMBLY - counterbalance, Includes: Ref. 14A & 15, Serial Range: -DBC0001068

6шт.

14a

NSS

NOT SOLD SEPARAT

VALVE - counterbalance, Serial Range: -DBC0001068

1шт.

15

126057A1

SEAL KIT

- seal, counterbalance valve, Serial Range: -DBC0001068

1шт.

Kit includes (3) O-rings and (4) backup rings.

1шт.

16

126158A1

ORIFICE

DISC - orifice, .110 and .042 inch diameter, Serial Range: -DBC0001068

1шт.

17

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75, Serial Range: -DBC0001068

1шт.

18

126160A1

ORIFICE

DISC - orifice, .060 inch diameter, Serial Range: -DBC0001068

1шт.

19

134168A1

ORIFICE

DISC - orifice, .042 inch diameter, Serial Range: -DBC0001068

2шт.
